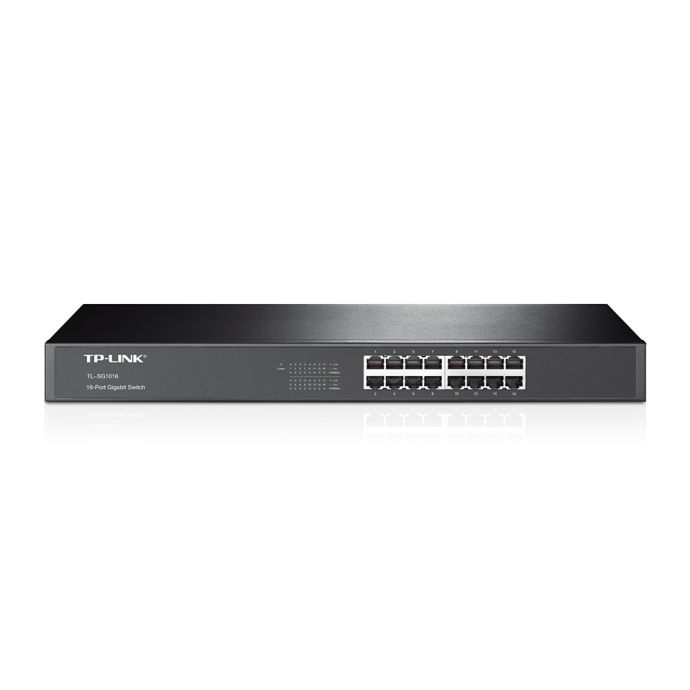

main product photo

Switch 16-port 10/100 / 1000M TPLINK

SKU
TL-SG1016
Brands: Tplink
€90.81 Tax included
% Discount for professionals
Tplink
Availability: On request
1 to 7 days
Be the first to review this product

16 Port 10/100 / 1000M Switch

The TL-SG1016 Gigabit Ethernet Switch offers you a high-performance, low-cost, easy-to-use, seamless and standard solution to upgrade your old network to a 1000Mbps network. All ports support auto MDI / MDIX so there is no need to worry about the type of cable, just plug it in and go. On the other hand, with the innovative technology of energy efficiency, the TL-SG1016 can save up to 15% of energy consumption; And as 80% of the packaging material can be recycled it is an eco-friendly solution for your business network

-
+

The TL-SG1016 Switch has 16 Gigabit RJ-45 ports that provide great file transfer and also support 10Mbps and 100Mbps Ethernet devices

What technical features does the TL-SG1016 switch have?

  • Innovative energy efficiency technology that saves up to 40% energy
  • 100% data filtering rate, which eliminates all erroneous packets
  • Supports IEEE 802.3x flow control in Full Duplex mode and Back-Pressure in Half Duplex mode
  • Non-blocking switching architecture for packet forwarding and filtering at maximum cable speed for optimum performance.
  • 32 Gbps switching capacity
  • MDI / MDIX automatic detection makes unnecessary use of cross cables.
  • Supports automatic learning and expiration of MAC addresses (Auto-Learning and Auto-aging)
  • Support for automatic N-Way, Store-and-Forward port negotiation
  • Compact design for rack-mounting or table-top use
  • Easy installation using Plug and Play

What technical specifications does the TL-SG1016 switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 9.26W (220V/50Hz)
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Jumbo Frame 10KB
QoS 802.1p/DSCP QoS*

*Only for V12 and later version
Green Technology Yes
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
More Information
More Information
EAN6935364020095
Hight0.530
Length0.080
Width0.250
REDES - SystemNOT POE
REDES - SERIE16 Ports
ColorBlack
Network EquipmentSwitch
Ports16
Data SpeedGigabit (10/100/1000Mbps)
PoENo
Product BrandTplink
