Switch 5 Ports 1Gb 4 POE+ and 1 POE Power Input 60W by Engenius

SKU
ENGEXT1105P
Brands: EnGenius
€112.41 Tax included
Availability: In stock
24/48 Hours

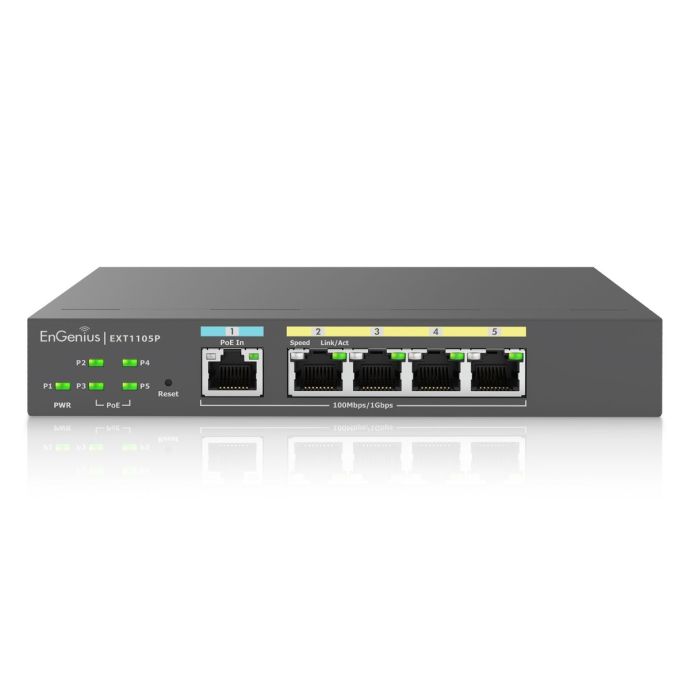

Switch 5 Ports 1Gb 4 POE+ and 1 POE Power Input 60W by Engenius

The EXT1105P is a cloud-managed switch from EnGenius that improves connectivity and optimizes network expansion. It has 5 gigabit ethernet ports.

The peculiarity of this switch is that it does not have a power supply as such, but is powered through port 1 of the same switch. Port 1 has a POE input that allows it to be powered. Ports 2 to 5 are equipped with 802.3at/af POE support up to 30w per port.

Connect cameras, other switches, IP phones through the POE ports with ranges of up to 100 meters.

This switch is manageable at the L2 layer, supporting IGMP and MLD snooping. It is a perfect solution for small businesses looking to improve network performance without much additional expense, which is why it has an optimized voice VLAN function, very reliable in VoIP service systems.

The management of the switch is done remotely with Engenius Cloud, so we will have visibility and control from any point, without having to be physically next to the network.

Package Contents
1 x Cloud Managed 5-Port Gigabit Switch Extender
1 product card.
1 x wall mounting kit.
1 x adhesive label.
1 x Rubber Foot Cushion



-
+

Technical Specifications of the Switch 5 Ports 1Gb 4 POE+ and 1 POE Input Power 60W from Engenius

Standards supported on ports
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network ports
4 ports 10/100/1000Mbps
1 10/100/1000 Mbps PoE input port for power

PoE compatible ports
Port 1 (PoE input) supports 802.3af/at/bt
Port 2 to Port 5 (PoE output) supports 802.3af/at
All Gigabit Ethernet ports can output up to 30 watts

Total PoE Budget
The total PoE budget is 15W when connected to an 802.3at compatible power supply, which provides 30W.
The total PoE budget is 30W when connected to an 802.3bt Type 3 compatible power supply, which provides 60W.
The total PoE budget is 60W when connected to an 802.3bt type 4 compatible power supply, which provides 90W.

Power supply
PoE power delivery/PoE input (port 1) compatible with 802.3af/at/bt

Switching Capability
10Gbps

Flash memory
32MB

Power supply
Standard 802.3 PoE input

802.1w fast expanding tree
Multicast filtering
IGMPv2
IGMP Snooping
IGMP Snooping Fast Output
Port statistics
802.1Q VLAN Tagging
voice VLAN
Port-based VLAN
Jumbo Frame
IPv4 configurations
Link Layer Discovery Protocol (LLDP)
Energy Efficient Ethernet (EEE) IEEE 802.3az
Weighted round robin tail (WRR)
Simple Network Time Protocol (SNTP)
SYSLOG
Factory default
Restart
find me

Temperature range
Operation: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing)
Operating: 5% - 95%

Dimensions and weights
EXT1105P device
Weight: 1.01 lbs. (460 grams)
Length: 6.69” (170mm)
Width: 4.13” (105mm)
Height: 1.02” (26mm)

Packaging
Weight: 1.14 lbs. (520 grams)
Length: 8.89” (226mm)
Width: 4.41” (112mm)
Height: 1.41” (36mm)

Warranty
2 years

Certifications
EC
FCC
I.C.

More Information
EAN 4711488350025
Hight 23.000
Length 12.000
Width 4.000
RED - System POE+
RED - SERIE 5 Ports
Color Gray
Network Equipment Switch
Ports 5
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand EnGenius
