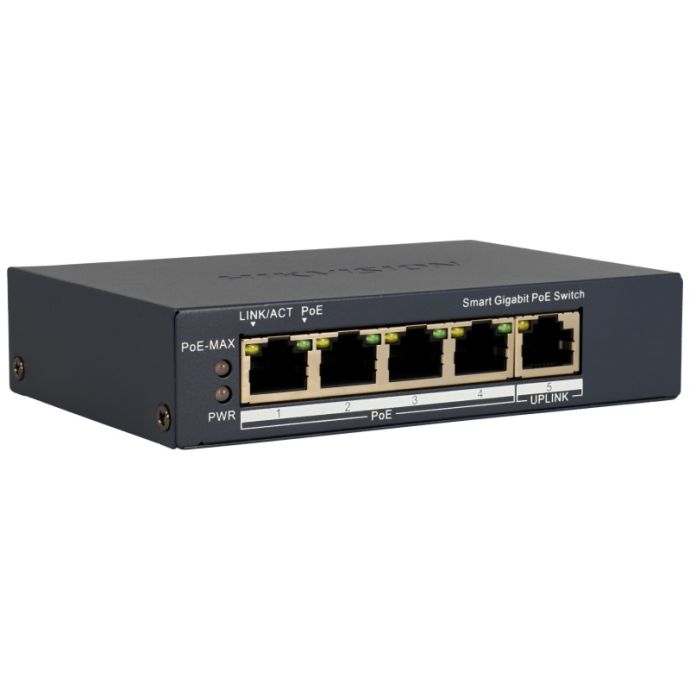

Switch 5 Ports 4 POE Ports 1GB and 1 Uplink 1GB 60W from Hikvision

SKU
DS-3E1505P-EI
Brands: Hikvision
€54.21 Tax included
Availability: On request
1 to 7 days

Hikvision 4-Port Gigabit Smart Switch + 1 Uplink Port

Intelligent switch with 4 gigabit POE ports plus 1 Uplink port, which is characterized by its simplicity and efficiency to operate in small and medium business environments. We can use this switch in video surveillance applications or small offices.

The switch allows distances of up to 300 meters, although this long-range performance may vary depending on the camera model or cable condition.

Supports POE on 4 of its ports, allowing the transmission of electrical power and data through the ethernet cable, making it much easier and simpler to install devices such as IP cameras, VOIP phones, wireless access points, etc. With a power budget of 60W, with a maximum per port power of 30W.

The switch ports offer up to 1Gbps capacity, providing efficient performance for small-sized networks. In addition, ports 1 to 4 are capable of automatically detecting and restarting unresponsive cameras.

It supports STP/RSTP loop prevention, this is used to prevent the switching network from forming loops that severely affect network communication (it is disabled by default).

The switch is plug and play, requiring no configuration, making it easy to deploy in the network and ready for immediate use. Its black metallic housing helps to avoid overheating. Its size is very compact, so you can install it discreetly anywhere.

-
+

Technical Specifications of the Hikvision 4-Port Gigabit Smart Switch + 1 Uplink

FEATURES (SWITCH)

Supported data rate: 10 Gbps

Packet forwarding rate: 7.44 Mpps

VLAN: Yes (max 32 VLAN)

DHCP: Yes

Maximum transmission distance: 300 m

Memory Buffer: 1 Mb

Mirror port: Yes

PoE Watchdog: Yes

MATERIAL AND DIMENSIONS

Material: Metal

Dimensions: 121.1 x 83.1 x 27.6 mm

Net weight: 220 g

Weight with packaging: 750 g

Installation: Desktop / wall

REMOTE MANAGEMENT

P2P: Yes

Software: Hik Pro Connect / IVSM4200

Switch reboot: Yes

PoE port reboot: Yes

Extended mode enablement: Yes, independently per port

Port speed modification: Yes

Actual power consumption: Yes, total and per port

Maximum peak consumption history: Yes (up to 7 days)

Real-time traffic information: Yes, per port

Connected device information: Yes for Hikvision equipment (IP, model and SN)

Automatic Topology Diagram: Yes, for connected Hikvision devices

NETWORK STANDARD

IEEE802.3af: Yes

IEEE802.3at: Yes

ENVIRONMENT

Operating Temperature: 0 ºC ~ 40 °C

Use: Indoor

Maximum humidity: 95%.

Lightning protection: 6KV

SYSTEM (SWITCH)

MAC address table: 2K

ETHERNET PORTS

POE Ports: 4

Speed POE Ports: 10 / 100 / 1000

Uplink ports: 1

Speed Uplink ports: 10 / 100 / 1000

Number of total ports: 5

POWER SUPPLY AND CONSUMPTION

Power mode: DC

Voltage: 54V

Consumption (w): 65W

Amperage: 1200mA

Standby Consumption: ≤ 0.9W

Maximum consumption per port (PoE): 30W

Maximum power consumption per switch (PoE ports): 60W

More Information
Hight 0.000
Length 0.000
Width 0.000
RED - System POE
RED - SERIE 5 Ports
Color Black
Network Equipment Switch
Ports 5
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Hikvision
