Switch 6 Ports 4 Ports POE 10/100 and Uplink 1Gb 60W from Hikvision

SKU
DS-3T1306P-SI/HS
Brands: Hikvision
€97.41 Tax included
Hikvision
Availability: On request
1 to 7 days

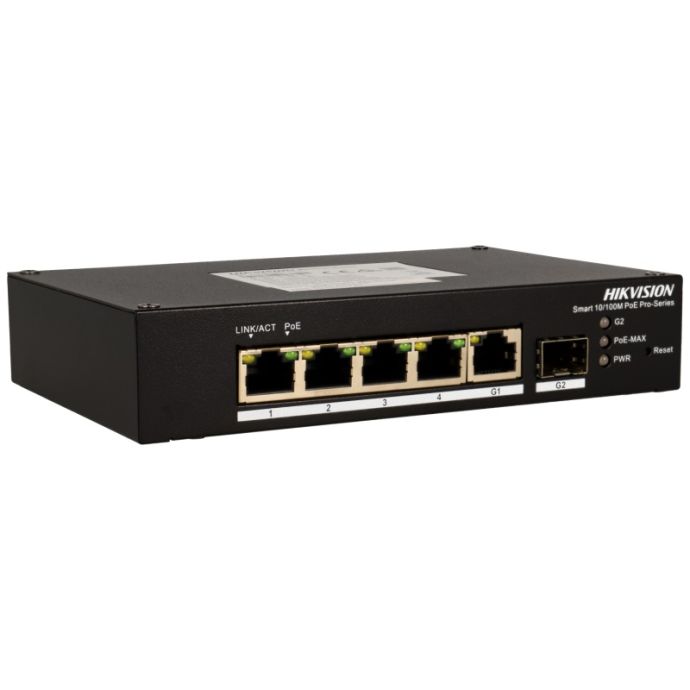

Hikvision 4 Port + 1 Uplink + 1 SFP Gigabit Intelligent Switch

Intelligent switch with 4 10/100 POE ports plus 1 Uplink port plus 1 SFP, which is characterized by its simplicity and efficiency to operate in small and medium business environments.

It supports POE on 4 of its ports, allowing the transmission of electrical power and data through the ethernet cable, making it much easier and simpler to install devices such as IP cameras, VOIP phones, wireless access points, etc. With a power budget of 60W, with a maximum per port power of 30W.

Ports 1 to 4 are capable of automatically detecting and restarting unresponsive cameras. The switch allows distances of up to 300 meters on these 4 ports, although this long range performance may vary depending on the camera model or cable condition.

Supports STP/RSTP loop prevention, this is used to prevent the switching network from forming loops that severely affect network communication (this is disabled by default).

It supports one-click activation and remote management through Hik-Partner Pro, with functions such as: displaying port speed, bandwidth usage rate, topology information, alarm status and remotely updating the device.

This switch can be desktop or DIN-rail mounted. Its housing is made of metal, which dissipates heat better. It is IP40 rated with protection against intrusion and humidity.

Technical Specifications of the Hikvision 4-Port Gigabit Smart Switch + 1 Uplink + 1 SFP

FEATURES (SWITCH)

Supported data rate: 14 Gbps

Packet forwarding rate: 10.42 Mpps

VLAN: Yes (max 4094 VLAN)

Maximum transmission distance: 300 m

Memory Buffer: 1 Mb

QoS: Yes

PoE Watchdog: Yes

MATERIAL AND DIMENSIONS

Material: Metal

Dimensions: 158 x 101.2 x 31.6 mm

Net weight: 390 g

Weight with packaging: 960 g

Installation: Desktop / DIN rail

REMOTE MANAGEMENT

P2P: Yes

Software: Hik Pro Connect / IVSM4200

Switch reboot: Yes

PoE port reboot: Yes

Extended mode enablement: Yes, independently per port

Port speed modification: Yes

Actual power consumption: Yes, total and per port

Maximum peak consumption history: Yes (up to 7 days)

Real-time traffic information: Yes, per port

Connected device information: Yes for Hikvision equipment (IP, model and SN)

Automatic topology diagram: Yes, for connected Hikvision devices

NETWORK STANDARD

IEEE802.3af: Yes

IEEE802.3at: Yes

ENVIRONMENT

Operating Temperature: -30 °C ~ 65 °C

Use: Indoor

Maximum humidity: 95%.

Lightning protection: 6KV

SYSTEM (SWITCH)

MAC address table: 2K

ETHERNET PORTS

POE ports: 4

POE Port Speed: 10 / 100

Uplink ports: 1

Speed Uplink ports: 10 / 100 / 1000

Fiber Port: 1 x 1000

Total number of ports: 6

POWER SUPPLY AND CONSUMPTION

Power mode: DC

Voltage: 48V

Consumption (w): 65W

Amperage: 1200mA

Standby Consumption: 5W

Maximum consumption per port (PoE): 30W

Maximum power consumption per switch (PoE ports): 60W



More Information
Hight0.000
Length0.000
Width0.000
REDES - SystemPOE
REDES - SERIE5 Ports
PoENo
Product BrandHikvision
Write Your Own Review
You're reviewing:Switch 6 Ports 4 Ports POE 10/100 and Uplink 1Gb 60W from Hikvision
Your Rating
File Label Size Download
pdf Ficha Técnica Switch 6 Puertos 4 Puertos POE 10/100 y Uplink 1Gb 60W de Hikvision 933.3 KB Download
