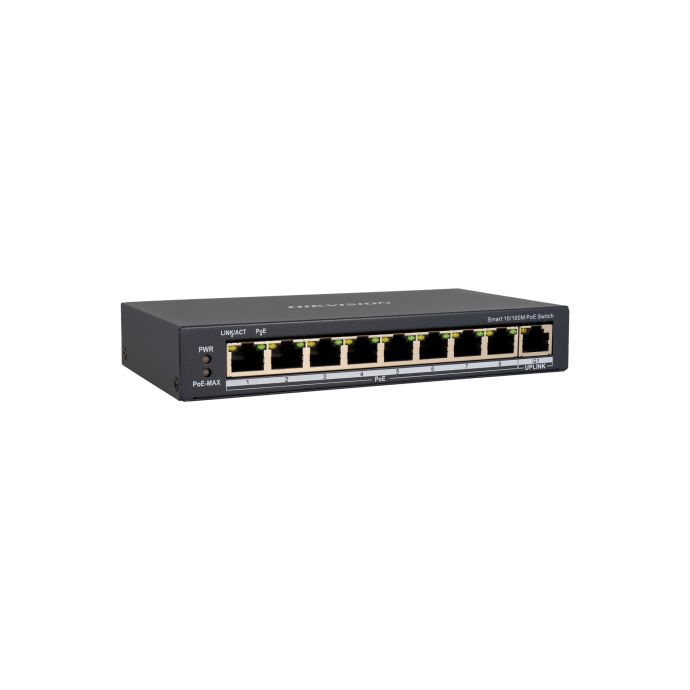

Managed Switch 9 Ports 8 POE 10/100Mbps and 1 Uplink 1GB 110W Cloud by Hikvision

SKU
DS-3E1309P-EI
Brands: Hikvision
€77.08 Tax included
Availability: On request
1 to 7 days

9-Port Managed Switch with 8 10/100Mbps POE Ports and 1 RJ45 Uplink 1GB Cloud by Hikvision

The new series of Hikvision switches from the Pro range provide you with the integration between switches and Hikvision IP devices with the Hik-ProConnect management platform, they are compatible with the HikCentral platform and iVMS4200, improving the experience with network management . This switch is the perfect solution for use with surveillance systems. You will be able to monitor, deploy and expand your surveillance system at any time and place through software.

The switch has 9 ports of which 8 of them are POE with a port speed of 10/100Mbps, through the IEEE802.3at/af standard. It has an Uplink port with 10/100/1000Mbps speed. Offers 6KV surge protection. In case of congestion, it has 2 priority POE ports.

Allows extended mode up to 300 meters with AF/AT camera.

It has various functions, including: viewing the network topology, monitoring the network status, restarting ports, receiving alarms about events on ports, real-time bandwidth consumption statistics and electricity consumption, reducing downtime. installation, maintenance costs. Its maintenance is simple thanks to remote management.

Its casing is metal, ideal to avoid overheating. They come in black and have dimensions of 170x93.1x27.6mm. It is very light, only 350g.

-
+

Technical Specifications of the 9-Port Switch with 8 100Mbps POE RJ45 Ports from Hikvision

Main features:

*8 10/100 Mbps 802.3af/at RJ45 PoE ports.
*1 RJ45 10/100/1000Mbps port for Uplink.
*Network topology management.
*Sending Network alarms.
*Network health status monitoring.
*Extended PoE up to 250m to power cameras.
*Compatible with Hik-ProConnect, HikCentral and iVMS4200 management platform.
*PoE power budget 110W.
*Switching capacity 6Gbps.
*Packet forwarding rate 2.6Mpps.
*Supports LLDP protocol for self-discovery on the Network.
*Supports Link Aggregation to add the capacities of 2 ports as one.
*Maximum power consumption 120W.
*Dimensions (W x H x D) 170×27.6×93.1mm.
*Operating temperature: -10–55.
*Storage temperature: -40–85.
*Power supply48 VDC, 2.5A (included).
*Weight 0.35 kg.
*2 years warranty.

More Information
Hight 0.000
Length 0.000
Width 0.000
RED - System POE
RED - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Hikvision
