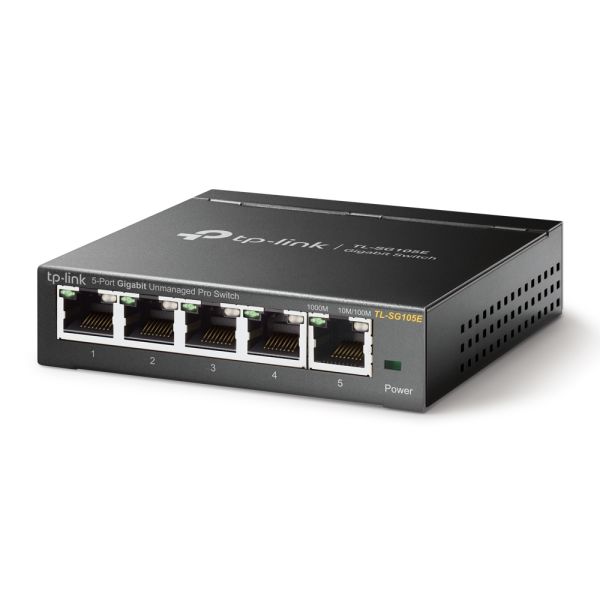

Easy Smart 5-port Gigabit TL-SG105E Switch

SKU
TL-SG105E
Brands: Tplink
€28.08 Tax included
% Discount for professionals
Tplink
Availability: In stock
24/48 Hours
Be the first to review this product

TP-LINK 10/100 / 1000Mbps 5-port switch

The TL-SG105E Switch is an ideal upgrade for non-manageable switches, perfect for home or small business networks.

The plug-and-play design makes the deployment easy without the need of a specialized technician, in addition its robust metal box provides better protection for its components.

This switch is equipped with intelligent management features, which make it effective both in simple networks and in high demand environments.

-
+

The auto negotiation on each port detects the link speed of the connected device and intelligently adjusts the configuration for optimal compatibility and performance.

What technical characteristics does the TL-SG105E switch have?

  • 5 RJ45 ports 10/100 / 1000Mbps
  • Connect and use (Plug n Play), without any configuration
  • Metal casing of superior quality and high durability and professional appearance
  • Smart configuration through web-based user interface and management utility
  • Green technology reduces energy consumption

What technical specifications does the TL-SG105E switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 5 RJ45 ports 10/100 / 1000Mbps
AUTO Negotiation / AUTO MDI / MDIX
Network Media 10BASE-T: UTP cable category 3, 4, 5 (maximum 100m)
EIA / TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP cable category 5, 5e (maximum 100m)
EIA / TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP cable category 5, 5e, 6 or higher (maximum 100m)
EIA / TIA-568 100Ω STP (maximum 100m)
Number of Fans Without fan
Power supply External Power Adapter (Output: 9VDC / 0.6A)
Dimensions 100 * 98 * 25 mm
Maximum Power Consumption 2.66W (220V / 50Hz)
Max Heat Dissipation 9.07BTU / h
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
Address Table MAC 2K
Memory of the Packet Buffer 1Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of service Supports port-based priority under the 802.1p / DSCP 2 standard
Supports 4 priority queues
Traffic limiter
Storm control
Characteristics L2 IGMP Snooping V1 / V2 / V3
Static port aggregation
Port Mirroring
Cable diagnostics
Prevention of loops
VLAN Supports up to 32 VLANs simultaneously (about 4,000 VLANs)
MTU / Port / Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certifications FCC, CE, RoHS
Package content TL-SG105E
Power cable
Installation guide
Rubber bases
System Requirements Microsoft® Windows® XP, Vista ™ Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux.
Environmental factors Operating temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
Storage temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% non-condensing
More Information
More Information
EAN 0845973022037
Hight 0.150
Length 0.100
Width 0.150
System NOT POE
SERIE 5 Ports
Color Black
Network Equipment Switch
Ports 5
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
