EnGenius 24 Port 1 Gb POE+ and 4 SFP 410 W Cloud Manageable Switch

SKU
ENGECS2528FP
Brands: EnGenius
€619.41 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

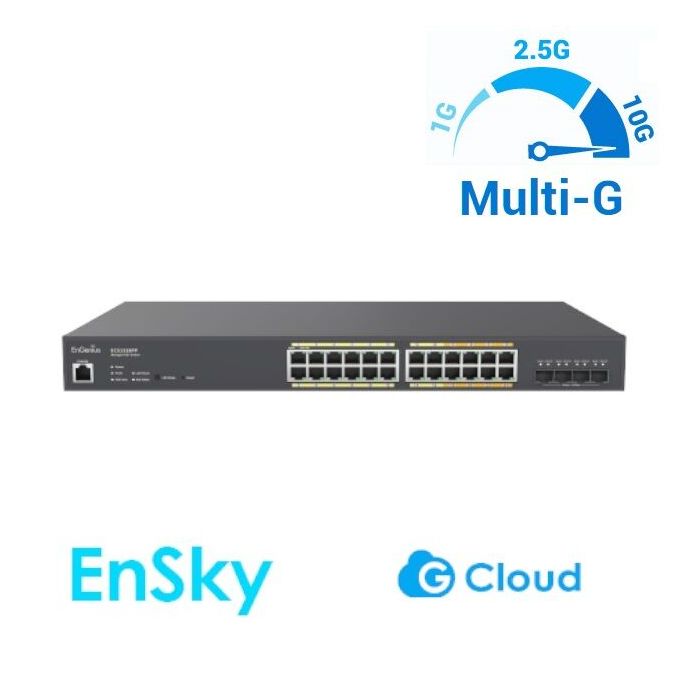

Switch Layer 2 + 24 ports Multi Gigabit PoE 4x10Gb SFP + 410W with Hybrid Control ECS2528FP

Switch with layer 2+ switching with 24 ports Multi Gigabit PoE + (16 Gigabit ports and 8 LAN ports 10/100/1000/2500) and 4 SFP+ ports for uplinks (modules not included). By including a 410W PoE, we will be able to power compatible devices, such as access points or IP cameras, VoIP phones, with 30W PoE per port.

This switch is suitable for a large number of WiFi 6 embedded applications. Enginius switches have high quality and stability, being a very successful solution for your installations.

19” rackmount size (includes rackmount kit). Cloud management and switching capacity of up to 152Gbps, so you do not have to be in the physical installation to make changes to the installation.

Hybrid switching mode supports operation by browser, enSky platform or Cloud platform.

-
+

Technical Specifications of the Switch Layer 2 + 24 ports Multi Gigabit PoE 4x10Gb SFP + 410W with Hybrid Control ECS2528FP

Technical specifications


Port regulations

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network ports

16 ports of 10/100/1000 Mbps
8 ports of 100/1000/2500 Mbps 4 ports
SFP+

Switching capacity

152Gbps

SDRAM

512MB

Flash memory

128MB

PoE Compatible Ports

1-24

Total PoE Budget

410w

Power supply

100~240VAC, 50-60Hz

Physical interface


LED indicators

Power LED Power LED
LED fault
PoE Max LED
LAN mode Mode LED
PoE

Ports

Link/Activity/Speed ​​(per Ethernet port)
Link/Activity/Speed ​​(per SFP slot)

environmental and physical


Temperature range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (non-condensing)

5% – 95%



Dimensions and weight


ECS1528FP device

Weight: 4.7kg
Width: 260mm
Length: 440mm
Height: 44mm

Package contents

1 ECS Managed Gigabit Switch
1 quick installation guide 1 power cable
feeding
1 x RJ45 console cable
1 rack mount kit

Warranty

2 years

More Information
Hight 0.000
Length 0.000
Width 0.000
RED - System POE
RED - SERIE 24 Ports
Color Black
Network Equipment Switch
Ports 24
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand EnGenius
