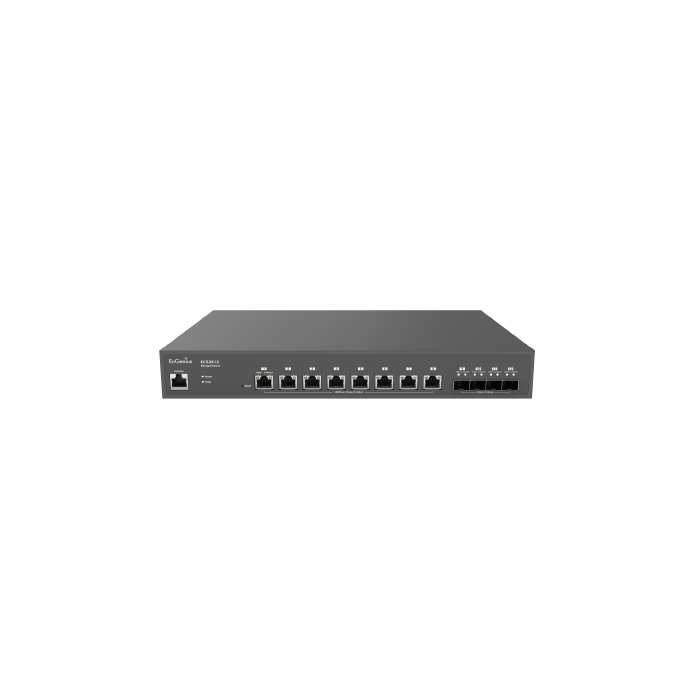

main product photo

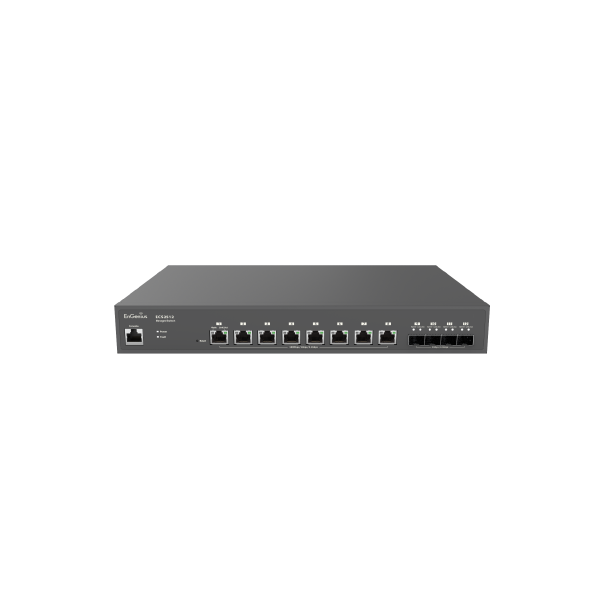

Switch L2 + 4x10Gb SFP+ 8 Gigabit Ports with Cloud/Local/EZMaster Management

SKU
ECS2512
Brands: EnGenius
€528.41 Tax included
Free shipping
(Iberian Peninsula)
% Discount for professionals
EnGenius
Availability: On request
1 to 7 days
Be the first to review this product

Layer 2 + 8 Port Gigabit 4x10Gb SFP+ Switch with Cloud/Local/EZMaster EC2512 Management

These switches can be managed by EnGenius Cloud and ezMaster or work independently. They improve network performance. They are simple, thanks to their simplified design, you can install them in a matter of minutes.

It has 8 ethernet ports (100/1000/2500Mbps) that transmit and receive data without any loss. They support bandwidths greater than one gigabit per second, which makes them very efficient. It also has 4 SFP+ ports.

-
+

Technical Specifications 8 Ports Switch EC2512

 Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

  • Network Ports

8 x 100/1000/2500 Mbps Ports

  • Switching Capacity

120 Gbps

  • SDRAM

512 MB

  • Flash Memory

128 MB

  • Power Source

100 ~ 240VAC, 50/60Hz

Physical Interface

  • LED Indicators

Power LED
Fault LED

  • Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

  • Network Management

EnGenius Cloud
ezMaster
Local Web GUI

  • MAC Address Table

16K

  • Jumbo Frame

9K

  • Multicast Group

Max 256 groups

  • MLD Snooping

MLD Snooping: v1

  • QoS-number of Priority Queues Supported

Queue 8

  • Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

  • Scheduling Mechanism

Strict / WRR/ Strict + WRR

  • Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

  • Port Security

Max. 256 Entries

  • Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Timebase ACL

  • Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

  • SSL Certificate

Certificate/Key Import

  • SNMP

SNMP v1/v2c/v3 Support

  • RMON

RMON 1,2,3,9

  • System Time

Time Setting/Daylight saving

  • Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

  • Multiple IP Interface

20 IPv6 address

  • ARP Table

Max. 192 ARP entries

  • Static ARP

Static 192 ARP entries

  • IPv4 Static Route

Max. 63 entries

  • IPv6 Static Route

Max. 21 entries

Environmental & Physical

  • Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

  • Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

  • ECS2512 Device

Weight: 1.9 Kg
Width: 230 mm
Length: 330 mm
Height: 44 mm

  • Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
REDES - System NOT POE
REDES - SERIE 8 Ports
Color Black
Network Equipment Switch
Ports 8
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand EnGenius
Reviews
Write Your Own Review
You're reviewing:Switch L2 + 4x10Gb SFP+ 8 Gigabit Ports with Cloud/Local/EZMaster Management
Your Rating
Product Attachment
File Label Size Download
pdf Ficha técnica switch 8 puertos gigabit + 4x10Gb SFP+ ECS2512 663.3 KB Download
