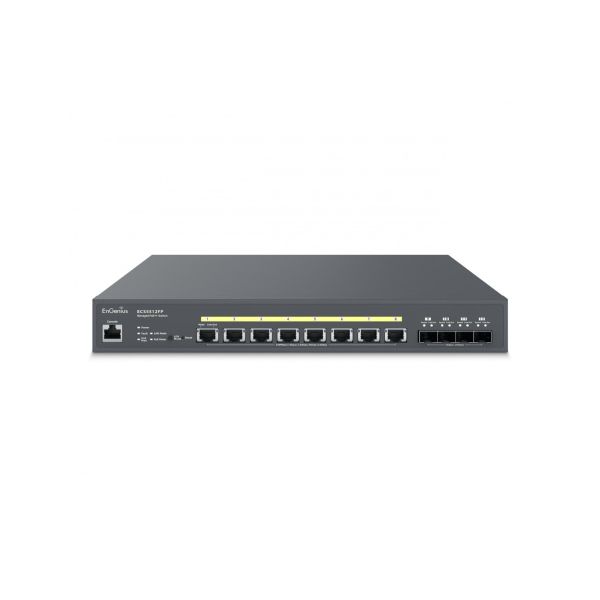

EnGenius 8 Port 1 Gb POE and 4 SFP 420 W Cloud Managed

Name: EnGenius 8 Port 1 Gb POE and 4 SFP 420 W Cloud Managed
Brand: EnGenius
SKU: ECS5512FP
Price: 673.72 EUR
Availability: InStock

SKU

ECS5512FP

Brands: EnGenius

€673.72 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Switch L2 + 8 ports Gigabit PoE 4x10Gb SFP + 420W with Cloud/Local/EZMaster ECS5512FP Management

This Multi-Gigabit L2 + switch has 8 Gigabit Ethernet ports of 100/1000/2500/5000/10000 Mbps, in addition to 4 SFP + ports of 1000/10000 Mbps and 8 PoE 802.3 af/at/bt up to 240W.

It is managed in the cloud, so you can access it with your mobile device or PC, with different configuration, monitoring and administration options. Its interface is very simple to use, ideal for IT professionals interested in having simple solutions that simplify the configuration and monitoring of the network. Manageable in layer 2 supporting IGMP and MLD snooping, 802.3ad Link Aggregation, QoS and Voice VLan.

Allows rack mounting with a size of 13 ”and includes: quick installation guide, rj-45 cable, power cord and rack mounting kit.

Details

Technical Specifications Switch ECS5512FP

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

8 x 100/1000/2500/5000/10000 Mbps Ports

Switching Capacity

240 Gbps

SDRAM

512 MB

Flash Memory

128 MB

PoE Capable Ports

1-8

Total PoE Budget

420w

Power Source

100 ~ 240VAC, 50/60Hz

Physical Interface

LED Indicators

Power LED
Fault LED

PoE Max LED

LAN Mode LED

PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
ezMaster
Local Web GUI

MAC Address Table

32K

Jumbo Frame

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8

Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict/WRR/Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Timebase ACL

Web Graphical User Interface (GUI)

HTTP IPv4/IPv6
HTTPS IPv4/IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS5512FP Device

Weight: 3.1 Kg
Width: 230 mm
Length: 330 mm
Height: 44 mm

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

More Information

More Information
EAN	4713361935206
Hight	0.000
Length	0.000
Width	0.000
RED - System	POE
RED - SERIE	8 Ports
Color	Black
Network Equipment	Switch
Ports	8
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	EnGenius
