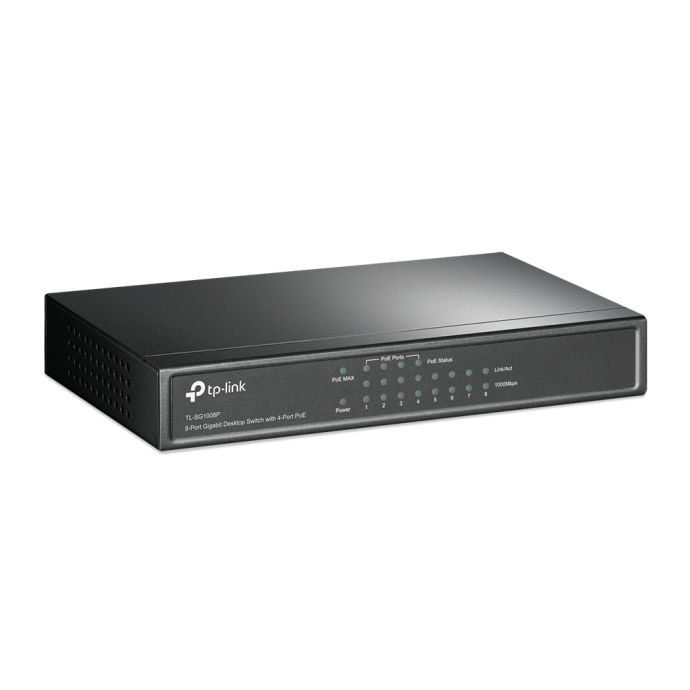

Switch of 8 ports of 1Gbps with 4 ports POE
Availability: In stock
24/48 Hours
8 ports switch with 4 POE ports
This 8-port Gigabit desktop switch with 4 PoE ports allows you to connect network devices with each other in a simple way.
It incorporates Gigabit Ethernet network capabilities at 1000Mbps and Fast Ethernet at 10 / 100Mbps.
These PoE ports automatically detect the presence of PoE devices compatible with the IEEE 802.3af standard and supply them with power.
The TL-SG1008P has a priority function that helps protect the equipment when there is an overload in the system power.
What technical characteristics does the TL-SG1008 switch have?
- 8 RJ45 ports at 10/100 / 1000Mbps
- Its 4 PoE ports transport data and power on a single cable
- When working with IEEE 802.3af compliant devices, extend home or office networks
- No configuration or installation required
- Supports PoE up to 15.4W per port
- Supports 55W maximum PoE for all ports
What technical specifications does the TL-SG1008P switch have?
| HARDWARE FEATURES |
|---|
| Interface |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
|---|
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
|---|
| Fan Quantity |
Fanless |
|---|
| External Power Supply |
External Power Adapter(Output: 48VDC / 1.25A) |
|---|
| PoE Ports (RJ45) |
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W |
|---|
| Backbound Bandwidth |
16Gbps |
|---|
| Mac Address Table |
4K |
|---|
| Dimensions ( W x D x H ) |
6.7*3.9*1.1 in. (171*98*27 mm) |
|---|
| Max Power Consumption |
5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected) |
|---|
| Max Heat Dissipation |
18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected) |
|---|
| SOFTWARE FEATURES |
|---|
| Transmission Method |
Store-And-Forward |
|---|
| Advanced Functions |
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS |
|---|
| OTHERS |
|---|
| Certification |
CE, FCC, RoHS |
|---|
| Package Contents |
TL-SG1008P, Power Adapter, Installation Guide |
|---|
| Environment |
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
More Information | EAN | 6935364021160 |
|---|
| Hight | 0.280 |
|---|
| Length | 0.070 |
|---|
| Width | 0.220 |
|---|
| REDES - System | POE |
|---|
| REDES - SERIE | 4 Ports |
|---|
| Color | Black |
|---|
| Network Equipment | Switch |
|---|
| Ports | 8 |
|---|
| Data Speed | Gigabit (10/100/1000Mbps) |
|---|
| PoE | Yes |
|---|
| Product Brand | Tplink |
|---|
| File | Label | Size | Download |
 | Ficha técnica del switch TL-SG1008P | 330.6 KB | Download |
