Tap DTT-SAT 1 Output F 10dB Tecatel

Name: Tap DTT-SAT 1 Output F 10dB Tecatel
Brand: Tecatel
SKU: TECDERCLA1S10
Price: 3.12 EUR
Availability: InStock

SKU

TECDERCLA1S10

Brands: Tecatel

€3.12 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

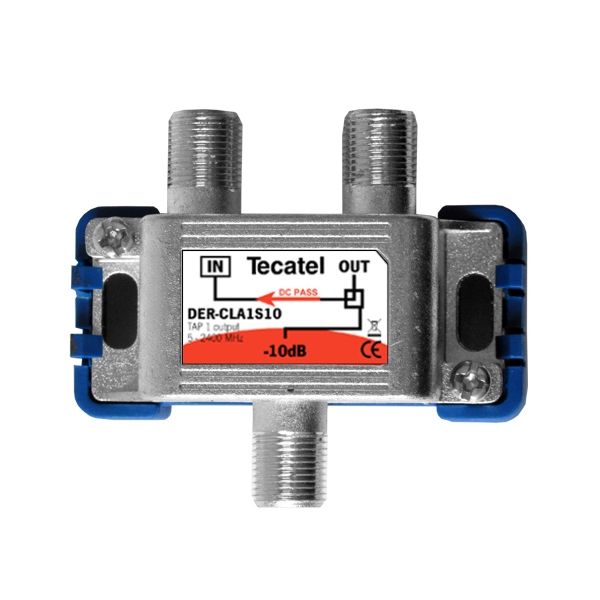

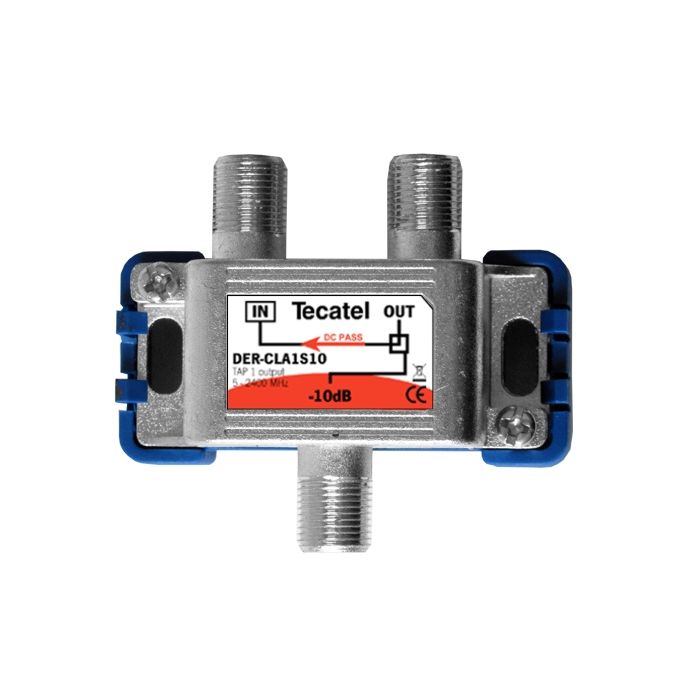

DTT-SAT 1 Output F 10dB Tap Tecatel DER-CLA1S10

Tap of 1 output with 10dB of losses for distribution of terrestrial and satellite signals (5-2400 MHz). Made with high quality Zamak shielding and type F connectors.

This tap is used in collective ICT installations to distribute the DTT-SAT signal to 1 home per floor and has a pass-through output with an attenuation of 1.3dB to connect to the tap on the lower floor.

Details

DTT-SAT 1-output type F tap with 10dB attenuation, for ICT collective installations

What technical specifications does the Tecatel DER-CLA1S10 Tap have?

Reference: DER-CLA1S10
Shunt losses:

5-1000 MHz: 10 ± 1 dB
1000-2400 MHz: 10 ± 1.5 dB

Insertion losses:

5-47 MHz: 1.3 dB
47-1000 MHz: 1.3 dB
1000-1750 MHz: 1.4 dB
1750-2300 MHz: 1.5 dB
2300-2400 MHz: 2.0 dB

Pass-by-pass isolation:> 16 dB
Dimensions: 57x49x26 mm
Weight: 40 gr.
Frequency range: 5-2400 MHz
Impedance: 75Ω
Connectors: F

More Information

More Information
EAN	8430549028975
Hight	0.060
Length	0.030
Width	0.050
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	F-connector
Color	Gray
TV-SAT Distribution Equipment	Diverter
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	1
Insertion Loss (dB)	10
Product Brand	Tecatel
