Tecatel 4K DVB-T/T2/C Digital Modulator

SKU
TECMOD-DIM4K
Brands: Tecatel
€888.62 Tax included
Free shipping
(Iberian Peninsula)
Tecatel
Availability: In stock
24/48 Hours

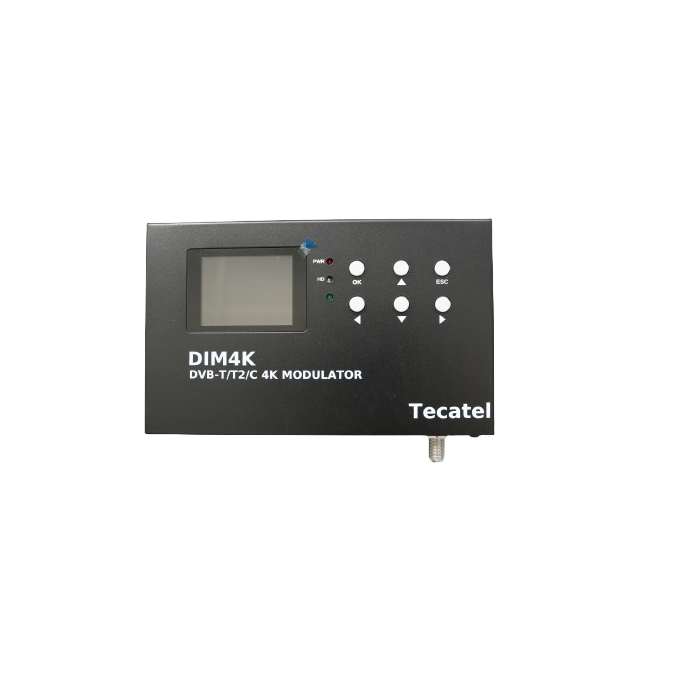

Tecatel Digital Terrestrial and Cable 4K Modulator

Tecatel's MOD-DIM4K modulator is an advanced solution for distributing high-definition audiovisual content over digital terrestrial television networks. It converts HDMI signals into DVB-T/T2/C channels, allowing its integration into existing distribution systems without the need for additional equipment.

Supports resolutions up to 1080p, ensuring clear and detailed transmission. It is compatible with the H.264 compression standard and AAC audio, guaranteeing efficient, high-fidelity playback.

Installation is very simple, thanks to an intuitive interface and menus programmed in several languages. Compact and robust design , facilitating its integration in various environments, from residential installations to commercial applications.

It can be used in hotels, hospitals, educational centers and any place that requires the distribution of high definition content to multiple televisions without the need for individual decoders. It is an economical and efficient solution.

Technical Specifications of Tecatel's 4K Digital Terrestrial and Cable Modulator

Technical Specifications – Tecatel MOD-DIM4K
Feature Specification
Video Resolution 3840×2160-30P, 1920×1080-50P/60i/50i, 1280×720-60P/50P
Video Interface HDMI Type A
Video Encoding H.264 / H.265, Bitrate: 1–20 Mbps
Aspect Ratio 09:04,4
Audio MPEG II Layer 2, 48 KHz, 64–320 kbps
Modulation DVB-T/T2/C/ISDB-T
Frequency Range 50–860 MHz
Output Level 70–100 dBuV (adjustable in 1 dB steps), 0–30 dB
Constellations DVB-T: QPSK, 16QAM, 64QAM; DVB-C: 16/32/64/128/256QAM
Guard Intervals 1/4, 1/8, 1/16, 1/32
Code Rates 1/2, 2/3, 3/4, 5/6, 7/8
FFT Modes 2K – 8K
Bandwidth 8 MHz (selectable)
MER >32 dB
Connector Type F-type female
Power Supply AC 100–240V to DC 12V/1.5A adaptor
Operating Temperature 0–45°C
OSD Languages Multilanguage
Dimensions 188.5 × 115.6 × 30.7 mm
Weight 0.375 kg
More Information
EAN8430549075672
Hight0.060
Length0.200
Width0.140
DTT SystemDigital Modulator
SERIES DTTHDMI
ColorBlack
TypeTransmodulator
Input signalDVB-C, DVB-T, DVB-T2
Common interfaceNo
Product BrandTecatel
Write Your Own Review
You're reviewing:Tecatel 4K DVB-T/T2/C Digital Modulator
Your Rating
File Label Size Download
pdf Ficha Técnica Modulador Digital 4K DVB-T/T2/C de Tecatel 138.3 KB Download
