Tecatel 80cm Satellite Dish Kit + Support + Universal LNB

SKU
TECK80C1LSCC
Brands: Tecatel
€55.54 Tax included
Availability: In stock
24/48 Hours

80cm Satellite Dish Kit + LNB + Support + Tecatel Cable

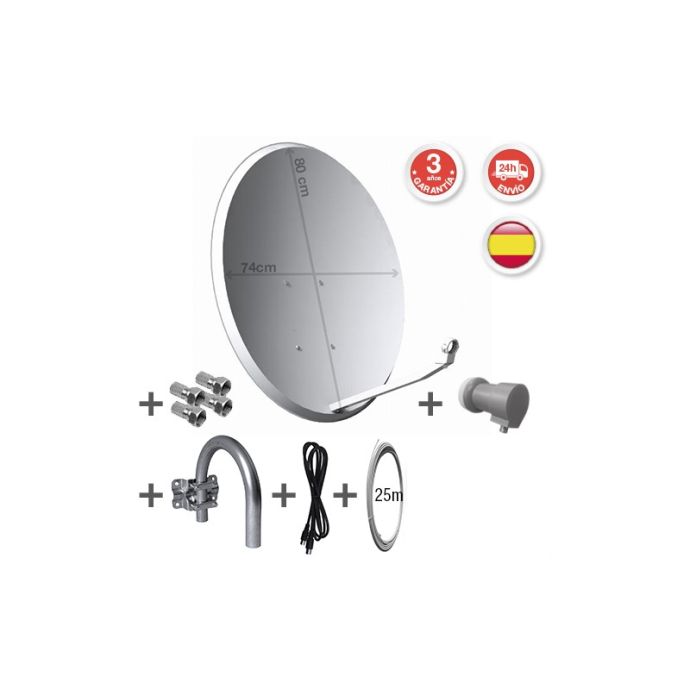

Kit consisting of an 80cm satellite dish, L-shaped antenna support to place it on the wall, Tecatel Universal LNB, 25 meter coil of coaxial cable. Also includes a free IECM/H cable.

With this kit you can receive the Astra 19ºE satellite signal throughout the peninsula.

The antenna is made of electrozinc-plated steel and polyester paint, which makes it very resistant to atmospheric conditions. The LNB is universal Illusion offset. 2 professional F-type connectors are included. The support is L-shaped, easy to assemble. Included in the kit is a 25 meter long coil of high quality coaxial cable.

All the necessary hardware for installing the antenna is also included: 4 female F connectors, screws and nuts.

-
+

Technical Specifications of the 80cm Satellite Dish Antenna Kit + LNB + Support + Tecatel Cable

Brand: Tecatel

Reference: K80C1LSCC

Antenna Diameter: 80cm

Support: PP-35

Cable length: 25 meters

No. of F Connections: 2 female

No. Screws included: 4

No. Nuts included: 4




Technical Specifications of the K80C1 Antenna



Medidas (mm.) Dimensions (mm.)

800 x 740

Ø Máximo mástil.
Ømax. Mast.

50 mm

*Resistencia al viento
Wind resistance

180 km/h

Abrazadera LNB LNB Bracket

Ø 40

Azimut pared / mástil Wall / mast Azimuth

180º / 360º

Ganancia a 12.5GHz.
Gain at 12.5GHz.

38,6 dB

Relacion F / D F / D ratio

0,59

Distancia focal Focal distance

350 mm

Eficiencia
Eficiency

80%

X Polarización
X Polaritation

>27 dB

Ancho de haz Beamwidth

>2.2

Elevación Elevation

20º + 87º

Max. Velocidad viento de trabajo
*Se recomienda proteger del viento directo

50 km/h

Material: Disco / Componentes Dish / Components material

Acero electrozincado / Galvanizado Zinc electroplated steel / Galvanized

Tratamiento de la superficie Superficial finishing

Epoxi-poliéster / Galvanizado Epoxi-polyester / Galvanized



PP-35 Support Specifications

✔ L-shaped wall bracket Ø 35 mm for 60, 65 and 80 cm antennas.
✔ Wall fastening using 4 screws with a maximum diameter of 8 mm.
✔ 35mm diameter and 2mm thick steel tube.
✔ 155 x 90 x 1.5 mm thick iron plate attached to the tube using 2 M-6 through screws.
✔ Electrozinc-plated anti-corrosion protection.
✔ Plastic plug for internal sealing of the tube.



More Information
EAN 8430549044524
Width 0.800
Hight 1.000
Length 1.000
System SAT SAT Reception
MANUFACTURER SERIE SAT Kit
Size 80 cm to 95 cm
Type Offset
Orientation Manual
Material Steel
Mast max. diameter 80 mm
LNB included Yes
Outputs Single
Product Brand Tecatel
Write Your Own Review
You're reviewing:Tecatel 80cm Satellite Dish Kit + Support + Universal LNB
Your Rating
File Label Size Download
pdf Ficha Técnica Kit Parabólica 80cm + Soporte + LNB Universal de Tecatel 362.6 KB Download
