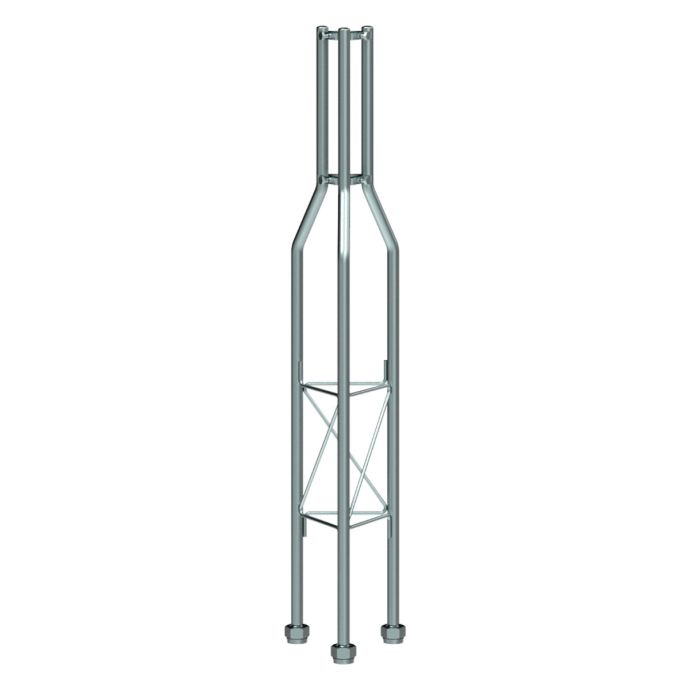

Televes 180 Tower Upper Section of 1m

The upper section of 1 meter turret has an external measurement of 180 mm, with plug-in sections by means of screws.

What are the characteristics of this turret?

- 20 mm steel  tube .

- Anchoring  system by means of fittings.

- Maximum mast  diameter : 46 mm.

- Galvanized anti-corrosion  protection with gray finish.

Where is this type of turret used?

This type of turrets are used in areas in which a great height is needed to install our antennas, since there are buildings or trees that prevent a direct connection between our antenna and the repeater, producing shadow areas, which causes interference and even complete loss of the image on our TV.

For the installation of the turret it is necessary the connection, by means of screws, of a fixed base of turret to screw to ground, which you can find in the following link.

This section is the upper part of the turret, so it is necessary to install it on another section, that is, it cannot be installed directly on the ground. For the installation of a turret you can choose different combinations, depending on the height we need, we can "play" with the installation of the sections we want, for example:

-  Base - intermediate - top.

-  Base - upper, if we need height, but not too much.

-  Base - intermediate - intermediate - upper, if we need a considerable height.

In addition to these conjugations, we can choose many other combinations, as long as the Base is screwed to the floor and the upper section is at the upper end.
