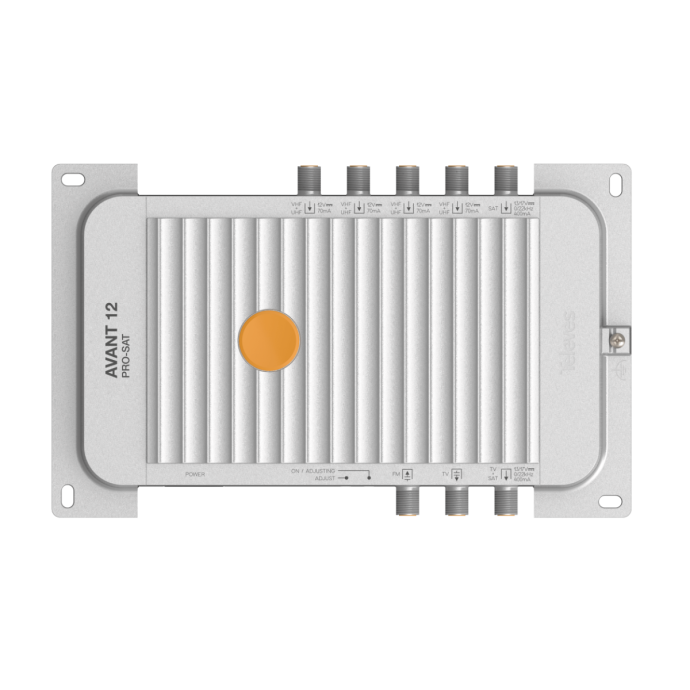

Televes Avant 12 SAT PRO Programmable Central with 6 Inputs 4xVHF/FM/IF 74 dB
Programmable Control Panel Avant 12 SAT PRO with 6 Inputs 4xVHF/FM/FI 74 dB of Televes
The Televes Avant 12 SAT PRO programmable control panel is a professional solution designed to manage and amplify the terrestrial and satellite television signal in collective installations, improving the installer's experience. Thanks to its advanced technology, it allows to filter, adjust and equalize signals automatically, ensuring a stable and high quality distribution. Its LTE filtering system protects against interference from the 4G/5G mobile network, ensuring clean reception without signal dropouts.
Design at Televes goes beyond aesthetics, combining functionality, identity and innovation. Thanks to a modular approach and a distinctive visual language, the brand has been recognized with awards such as the Good Design Award, Gold German Design Award and European Product Design Award. Its design balances robustness and sophistication, highlighting the iconic "orange heart", a symbol of its fusion of tradition and innovation. This vision is reflected in its products for the distribution of audiovisual services, which anticipate the future of telecommunications and consolidate Televes as a benchmark in the sector.
Among its main technical specifications, its capacity to manage DTT (DVB-T/T2) and satellite (DVB-S/S2) signals stands out, with up to 32 individually programmable filters, which optimize the reception of each channel together with the automatic regulation of the signal in each filter (CAG). It supports FM, Band III, UHF and SAT inputs with an output level of up to 124 dBµV in terrestrial and 123 dBµV in satellite, this substantial increase of the output voltage is one of the main novelties of this series, in order to reach a greater number of sockets.
Wireless programming (bluetooth) through the free ASuite app meets the needs of the most demanding users from a smartphone or tablet, making collective installations easier, faster and more efficient, even in difficult conditions. It allows two programming modes: automatic or advanced.
The Avant 12 PRO is ideal for neighborhood communities, hotels, hospitals or any installation that requires distributing the TV signal to multiple points without losing quality. For example, in a multi-dwelling building, it allows all neighbors to receive an optimal signal without the need for additional amplifiers on each floor. In addition, its compact design and low power consumption make it an efficient and sustainable option. It has a highly shielded chassis made of zamak, which protects against electromagnetic interference, very light and compact size and 100% European manufacture.
In addition, the PRO model also includes the self-programming function executable from Asuite, in which the device uses its intelligence and programs itself, searching and selecting the most prominent channels, balancing the signal level between them.
