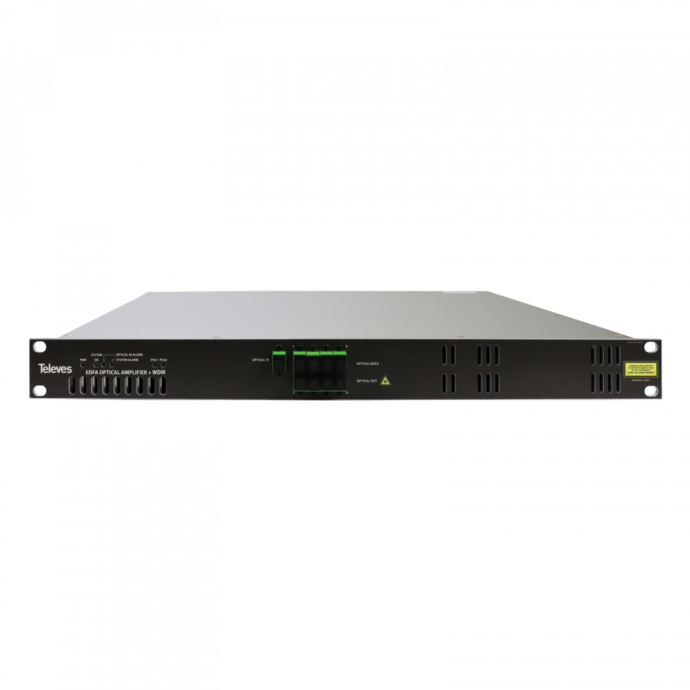

Televes EDFA Optical Amplifier 4 Outputs 14dB + FA 19''

SKU
TEL769631
Brands: Televes
€2,786.21 Tax included
Free shipping
(Iberian Peninsula)
Televes
Availability: On request
1 to 7 days

Televes EDFA Optical Amplifier 4 Outputs WDM 14dB

This device is essential for boosting optical signals in telecommunications systems. Based on EDFA (Erbium-Doped Fiber Amplifier) technology, this equipment directly amplifies light signals without the need to convert to electrical signals, ensuring a more efficient and higher quality transmission.

This type of amplifier is used in Internet Service Providers (ISP) ideal for extending the coverage and quality of signals in fiber optic networks, in companies with large network infrastructures, cable TV operators, etc.

It operates at a wavelength of 1550nm offering a power of 14dBm and a low noise figure, ensuring a robust and clear signal in each of its four outputs. This amplifier incorporates a wavelength multiplexer that allows combining 1550nm signals with other 1490nm and 1310nm signals, facilitating integration with GPON services and optimizing the existing infrastructure.

The 769631 amplifier has a height of 1U and can be installed in 19" rack cabinets, facilitating its installation in standard data center and telecom room spaces.

Technical Specifications of the Televes EDFA 4-Output WDM 14dB Optical Amplifier

Number of RF Overlay optical input ports   1
Number of DATA optical ports (GPON)   4
Number of optical output ports   4
Longitud de onda (@RF Overlay) nm 1540 ... 1560
Longitud de onda GPON (@Upstream) nm 1310
GPON Wavelength (@Downstream) nm 1490
Optical Input Power RF Overlay Min dBm -10
Optical Input Power RF Overlay Max dBm 10
RF Overlay Optical Output Power dBm 14
Max noise figure dB 5,5
Optical return losses dB -40
GPON Max Insertion Losses dB 1
C/N dB 51
CSO Max dB -65
CTB Max dB -65
Optical connectors   SC/APC
Protection index (IP)   20
Operating temperature °C -5 ... 45
Network frequency   50Hz / 60Hz
Supply input voltage Vac 110 ... 230
Max input current of the source m.a. 110
Max power supply input power IN 5,5
More Information
EAN8424450224168
Hight0.600
Length0.600
Width0.150
ColorBlack
REDES - SystemGPON
REDES - SERIEFO Distribution
Product BrandTeleves
EntornoInterior
