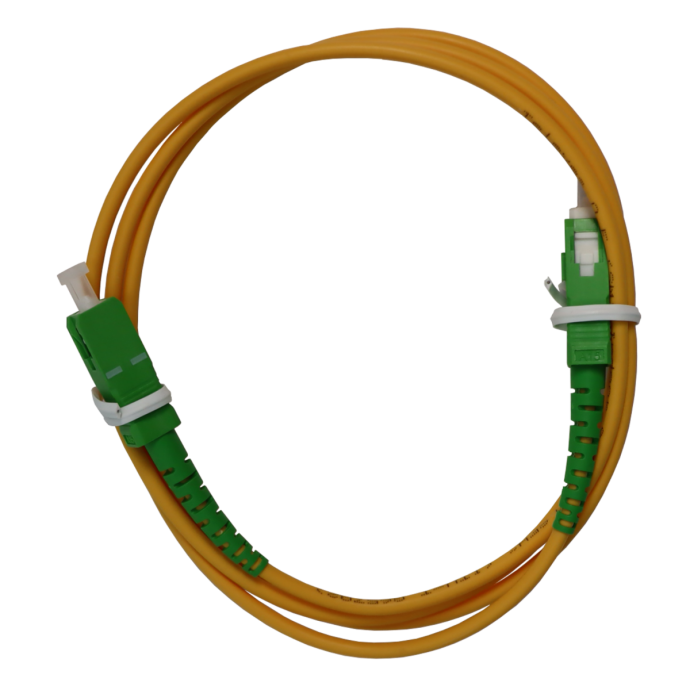

Televes Indoor LSFH Singlemode (SM) SC/APC Fiber Optic Patch Cord 1m

SKU
TEL232626
Brands: Televes
€4.05 Tax included
Availability: In stock
24/48 Hours

1m FO hose with SC/APC connectors

Televes 232626 fiber optic patch cord 232626 is a single mode (SM) preconnectorized patch cord with SC/APC connectors for interconnecting optical equipment. It has a length of 1metro.

This patch cord can be used for different uses: for single-mode fiber installations, either from an operator, or in an ICT fiber infrastructure, it can be used in data networks in a company or a building, but we can also use it in a fiber CCTV installation.The jacket is halogen-free (LSFH) and is recommended for use in indoors. The hose is of type ITU-T G.657.A2..

Supplied in individual bag with hanger.

-
+

Technical Specifications of 1m FO Hose with SC/APC Connectors

Fiber type



Single-mode (ITU-T-G.657A2)

Fiber type category



OS1

Fiber core diameter

μm



Fiber cladding diameter

μm



Fiber coating diameter

μm



Cable structure



Adjusted

Diameter Outer jacket

mm



Material Outer jacket



LSFH

Attenuation 1310nm

dB/km

< 0.4

Attenuation 1490nm

dB/km

< 0.4

Attenuation 1550nm

dB/km

< 0.3

Insertion losses in connector 1

dB

< 0.5

Insertion losses in connector 2

dB

< 0.5

Return loss at connector 1

dB

> 60

Return loss on connector 2

dB

> 60

Optical connector type 1



SC

Polishing type (Optical connector 1)



APC

Optical connector type 2



SC

Polishing type (Optical connector 2)



APC

Minimum bending radius

mm



Operating temperature

°C

-20 ... 70

More Information
EAN 8424450239001
Hight 0.001
Length 0.100
Width 0.080
System DTT Monomode
Serie 1m
Fiber type Singlemode
Entorno Interior
Color Orange
Product Brand Televes
