Terra Broadband Central 3 UHF/VHF/FM 47dB Inputs

Terra's 3 Inputs Broadband Central Station

This central has 3 inputs (UHF/VHF/FM) and 1 output. It has a gain of 47dB for UHF with a maximum output of 121dBuV.

This amplifier is adapted to the second digital dividend thanks to the built-in 5G LTE filter, which rejects the 5g band. It allows to power upstream equipment or active DTT antennas thanks to the 12V and 100mA it supplies. It has DC overload protection and indication. It has gain control (0-20dB) and return loss greater than 10dB.

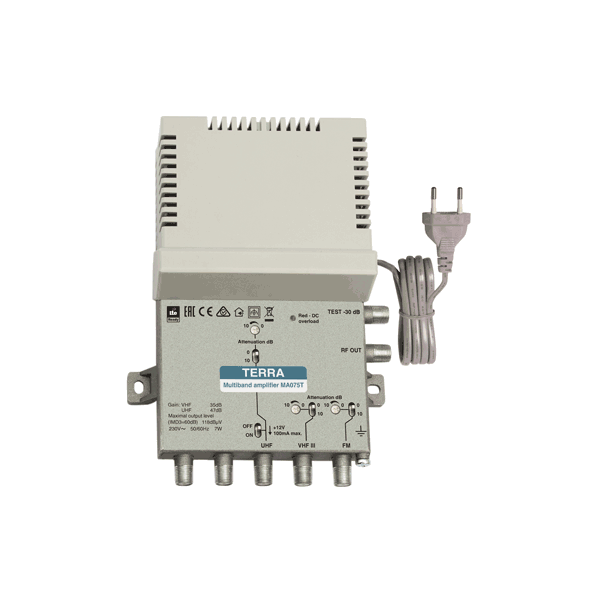

The MA075T is made of resistant materials and is shielded, has dimensions of 135x180x52mm and incorporates the power supply. Its compact size facilitates installation in indoor TV distribution panels.
