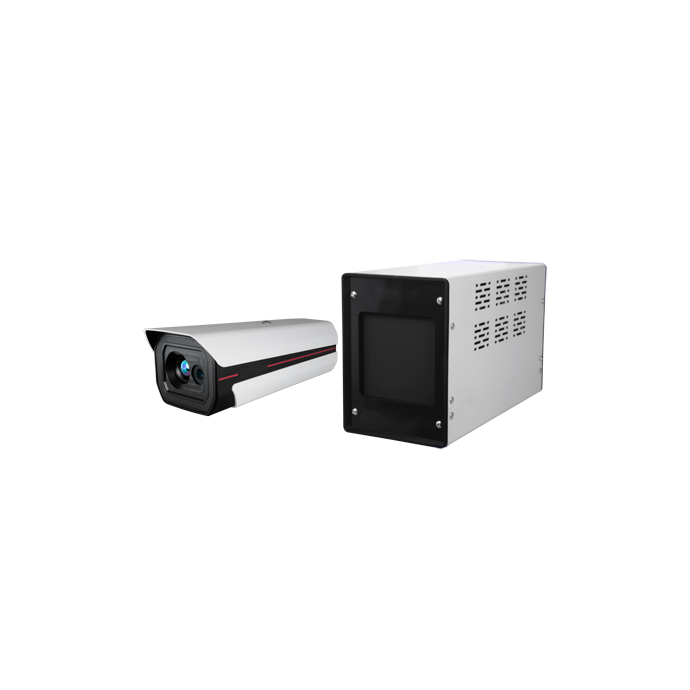

Thermographic Camera with Blackbody + Tripod

SKU
BODYTEMPBB
Brands: TDTprofesional
€8,004.15 Tax included
Free shipping
(Iberian Peninsula)
11% Discount for professionals
TDTprofesional
Availability: On request
1 to 7 days
Be the first to review this product

Dual IP Thermographic Camera with Blackbody KIT-BODYTEMP-BLACKBODY

This kit includes a Fixed IP Dual Thermographic Camera with sensitivity <40mK (0.05 ºC) and 1920x1080p optical resolution, a Blackbody for precision calibration and a Tripod. Kit to measure body temperature at a distance of 3-4 meters, with a temperature range of 20-50ºC and high precision using the Blackbody.

Thermal camera with tripod to detect the body temperature of people in a passing area. The Blackbody automatic calibration system guarantees highly accurate results (± 0.3ºC). The camera includes a MicroSD card storage slot up to 256GB.

Waterproof equipment, suitable for outdoor use. Recommended installation at 2 meters high.

-
+

Dual IP Thermographic Camera Kit with Blackbody calibrator and tripod for passing areas.

Main features of the KIT-BODYTEMP-BLACKBODY Thermographic Camera Kit:

  • System for remote body temperature measurement
  • Dual IP Thermographic Camera
  • Thermal resolution 384x288
  • Optical Resolution 1920x1080
  • 10 mm Lens (Term)
  • Accuracy ± 0.3°C (With blackbody)
  • Temperature measuring range 20ºC ~ 50ºC
  • Blackbody (Included): Precision calibration system
  • Temperature adjustment range 30ºC ~ 50ºC
  • Temperature resolution 0.1ºC
  • Temperature stability ±(0.1-0.2)ºC/ 30 min
  • Monitoring and management software

What technical specifications does the KIT-BODYTEMP-BLACKBODY Thermographic Camera Kit have?

Dual IP Thermographic Camera

Thermal sensor 384x288 Vanadium Oxide
Optical sensor 1/2.7” Progressive Scan CMOS 2 Megapixel
Minimum illumination (for optical part) Colour: 0.09 Lux @ (F1.6, AGC ON), IR up to 50 m distance
Main Stream rate 384x288(50fps) Thermal / 1920x1080 (25fps) Optical
Extra Stream rate 384x288 (50fps) Thermal / 704x576 (25fps) Optical
Compression H.265+ / H.265 / H.264+ / H.264 / MJPEG
Lens 15 mm (Term)
Viewing angle 37.5°×28.6° (Therm)
Thermal sensitivity < 40mK (0.05 º C)
Thermal measurement range 20 ~ 50ºC / High precision ± 0.3ºC (Only using blackbody)
Spectral range 8~14μm
Pixel size 17μm
Intelligent functions Body temperature measurement
Features in Measurement Up to 30 face detections in the same scene / Between 3 ~ 4 m of distance in the detection
Audio 1 output line level 600 ohm
Alarm 1 Relay
Internal memory Micro SD card up to 256GB
Network interface Ethernet 10/100 BaseT
Remote access WEB, CMS and NVR interface
Interoperability ONVIF
Recommended Installation 2 m of height
Power supply 12VDC
Temp. operation 0º C ~ +30º C
Degree of protection Weatherproof IP66
Dimensions 293.9 mm (Fo) x 120.7 (An) x 119 (Al) mm
Weight 2 Kg

Blackbody

Temperature Range 30ºC ~ 50ºC Adjustable
Temperature Stability ±(0.1-0.2)ºC/ 30 min <
Recommended Installation 2 m max. from the ceiling (always inside the camera FOV)
Power supply 220 VAC, 50 Hz
Dimensions 240 (D) x 150 (H) x 160 (W)

More Information
More Information
EAN8403972637014
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMIP
SEGURIDAD - SERIEBullet
TechnologyIP, Thermographic
ColorWhite
TipeBullet
EntornoExterior
OpticsFixed
Product BrandTDTprofesional
