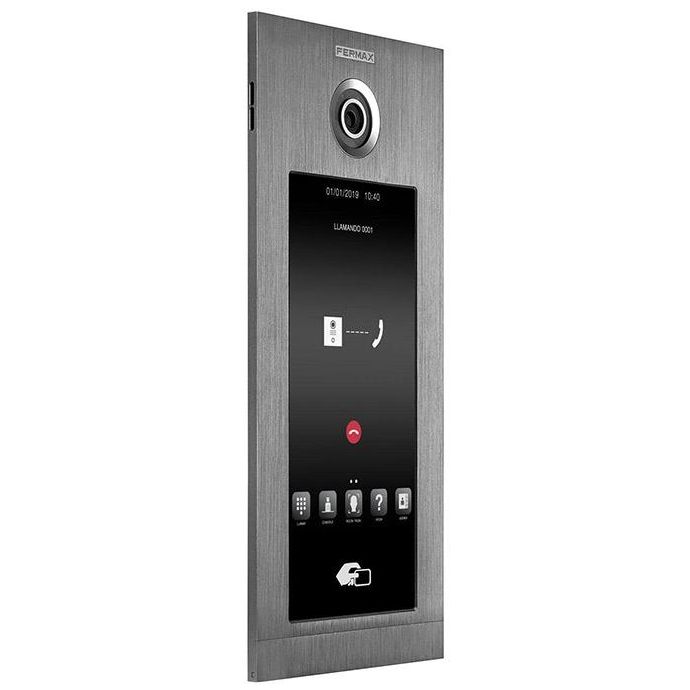

Touch Plate Kin Meet 1445 Fermax

This is one of the most interactive street panels in the range. With a multitude of functions on a full color 10” TFT touch screen.

It is an aluminum plate on a high-resistance tempered glass with a touch screen. Its high-resolution 1.2Mpx color camera allows facial recognition for up to 10,000 users, which allows the resident to access quickly and safely, although access to the home can also be done through a proximity reader, with a card or keychain, or through a PIN.

Functions such as calls to the house, to the concierge, alphanumeric calls, additional relays, connection to an IP camera are some of the functions that this panel from the Kin Meet range has. One of the most striking functions is facial recognition, but it also allows the transmission of images from the camera to a video recorder or CCTV security camera through the RTSP protocol, although it is not possible to send RTSP video and perform facial recognition simultaneously. .

It has a graphite gray finish, includes high-power speakers, which are hidden by the screws thanks to its avant-garde design. In addition, it has IP54 protection against acts of vandalism. If the panel is separated from its location, it sends an alarm to the associated guard units.

Technical Specifications of the Touch Plate Kin Meet 1445 Fermax

System:

  • CPU: Quad-core Cortex™-A7 1.5GHz
  • GPU: Mali400MP2
  • FLASH: 8GB eMMC Flash
  • SDRAM: 1GB DDR3L

Screen:

  • 10.1” color TFT
  • Resolution 1024 x 600 pixels
  • Viewing angle: 130º H, 140º V
  • Contrast: 800/1
  • Brightness: 300cd/m2

Audio:

  • Codec G.711/G729

Camera:

  • 1/3” Color CMOS
  • 120º Diagonal Lens, Horizontal 105º, Vertical 55º
  • 1280 x 720 pixels
  • Minimum illumination: 0.5 LUX. Automatic LED activation
  • AWB

Electrical consumption:

  • Standby: 250mA
  • Operating: 1000mA
  • With active heater (*): 1500 Ma

Voltage:

  • 12vdc
  • PoE

Connectivity:

  • RJ-45 Ethernet connector
  • RS485 connection port for relay module and elevator control.
  • Wiegand-26 connection for external access control reader.
  • Remote configuration and management via webserver.

Environmental characteristics:

  • Temperature: -40º C.. + 70ºC
  • Humidity: 20 – 80% (non-condensing)
  • IP54

*The plate must be placed together with Ref. 1449 Recessed Box Kin

More Information
EAN8424299014456
Hight0.470
Length0.140
Width0.260
ACCESOS - SISTEMAIP
ACCESOS - SERIEKIN
Color Portero/VideoporteroColor
TypeEntrance panel
Product BrandFermax
