Tp-Link 16 Port 10Gb SFP+ Manageable Switch

SKU

TL-SX3016F

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€690.39 Tax included

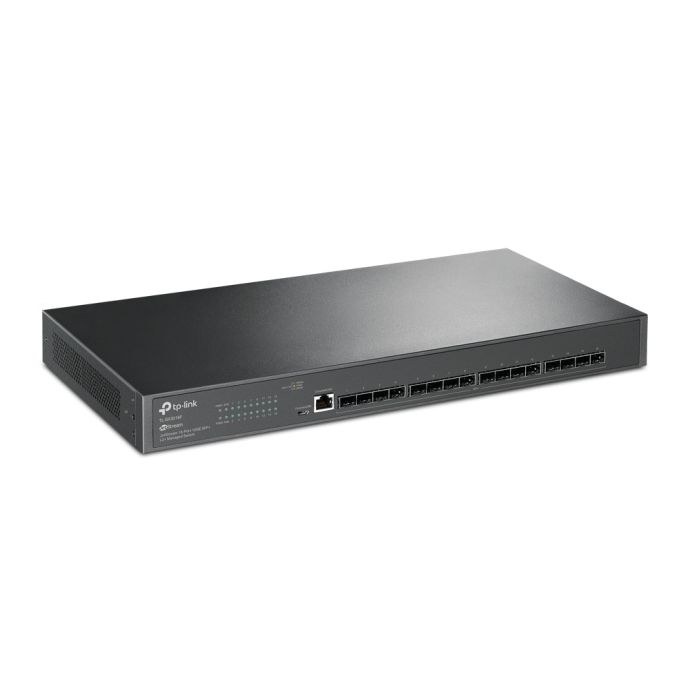

Tp-Link JetStream 16-Port SFP+ Managed Switch JetStream

The TL-SX3016F is a high-performance network devicewith high manageability for enterprise and data center environments. It is a 16-port 10GE SFP+ L2+ 10-port JetStream managed switch.

Ideal for small, medium and large enterprise networks, to create or expand an ultra-fast network that will exceed the needs of high speed, security and reliability.

The switch features 16 full fiber 10 Gigabit ports with a maximum switching capacity of 320Gbps, which will meet the bandwidth demands of the most demanding applications. Each port can operate at its maximum speed simultaneously without bottlenecks in network performance. In addition, it has an RJ45 console port and a micro USB console port, it is a USB C port where we can connect the console port to make configurations.

This device offers various management functions that allow network administrators to optimize and control data traffic, including VLAN, QoS, SNMP and more. Seamless integration with Omada Cloud SDN (software-defined networking) including devices such as access points, switches and routers, providing 100% centralized cloud management. Enables control from a single interface. Both wireless and wired connections are seamless.

It features two dual redundant power supplies, which back each other up, making the network architecture much more reliable.

Details

Tp-Link JetStream 16 Port SFP+ Managed SFP+ Switch Technical Specifications

HARDWARE FEATURES
Interface	• 16× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	1
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	32.74 W (220 V / 50 Hz)
Max Heat Dissipation	111.71 BTU/hr (220 V / 50 Hz)

PERFORMANCE
Switching Capacity	320 Gbps
Packet Forwarding Rate	238.08 Mpps
MAC Address Table	32 K
Packet Buffer Memory	24 Mbit
Jumbo Frame	9 KB

MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SX3016F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
