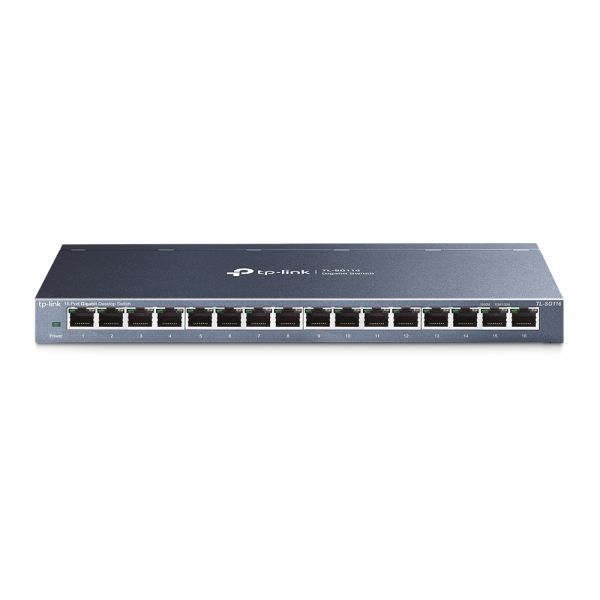

TP-LINK switch with 16 Gigabit RJ45 ports

SKU
TL-SG116
Brands: Tplink
€71.62 Tax included
Availability: On request
1 to 7 days

16-port gigabit switch

The TP-Link 16-port 10/100 / 1000Mbps TL-SG116 switch provides an easy way to transition to Gigabit Ethernet.

It allows you to increase the speed of your network server and trunk network connections. In addition, the Plug and Play design, without the need for configuration, makes the product easy to use.

With innovative energy efficiency technology, the TL-SG116 can save energy consumption, which makes it an eco-friendly solution for your home or office network.

-
+

The TL-Link TL-SG116 switch automatically adjusts power consumption according to link status and cable length.

What technical characteristics does the TL-SG116 switch have?

  • 16 RJ45 auto-negotiation ports of 10/100 / 1000Mbps that support Auto-MDI / MDIX
  • Green Ethernet technology saves energy consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, table or wall.
  • Supports 802.1p / DSCP QoS and IGMP snooping function
  • Plug and play, no need for configuration

What technical specifications does the TL-SG116 switch have?

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
Interface 16 × 10/100/1000Mbps Ports
Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity Fanless
External Power Supply External Power Adapter 100VAC ~ 240VAC
(Output: 12VDC / 1.0A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 11.3 × 4.4 × 1.0 in.
(286 × 112 × 25 mm)
Max Power Consumption 10W
Max Heat Dissipation 34.1 BTU/h
PERFORMANCE
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification FCC ,RoHS
Package Contents 16-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Rubber Feet
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
More Information
EAN 6935364084325
Hight 0.410
Length 0.070
Width 0.170
RED - System NOT POE
RED - SERIE 16 Ports
Color Black
Network Equipment Switch
Ports 16
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Tplink
Write Your Own Review
You're reviewing:TP-LINK switch with 16 Gigabit RJ45 ports
Your Rating
File Label Size Download
pdf Ficha técnica del switch TL-SG116 de TP-Link 424.2 KB Download
