TP-LINK 16 Port 1Gb POE+ Switch 16 Ports POE+

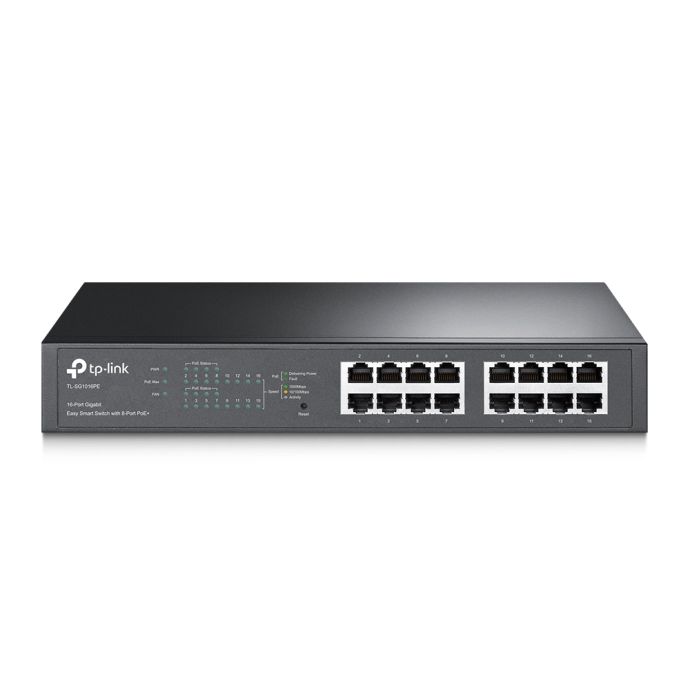

Name: TP-LINK 16 Port 1Gb POE+ Switch 16 Ports POE+
Brand: Tplink
SKU: TL-SG1016PE
Price: 214.05 EUR
Availability: InStock

SKU

TL-SG1016PE

Brands: Tplink

€214.05 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

Switch TL-SG1016PE 16-port Gigabit with 8 Ports POE

This TP-Link Switch has 16 RJ45 ports with 10/100/1000Mbps bandwidth for Data and VoIP.

Of those 16 ports, 8 support PoE+ power (Power over Ethernet Plus), transferring data and power to power the equipment through the same twisted pair cable. It can power more powerful equipment such as access points, IP cameras and IP telephones.

This device saves up to 75% of energy consumption thanks to its energy efficiency technology, an ecological solution for your business network.

The TL-SG1016PE switch is easy to install and use. It does not require configuration or previous installation. Rack-mount design with exceptional performance and quality.

Details

TP-Link TL-SG1016PE 16-port switch with PoE power and protection against electrical overloads. The best solution to expand your home or business network with the best guarantee of quality and performance.

What are the main features of the TP-Link Switch TL-SG1016PE?

16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 110W, up to 30W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

What technical specifications does the TL-SG1016PE TP-Link Switch offer?

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	1
Physical Security Lock	Yes
PoE Ports (RJ45)	Standard: 802.3 at compliant PoE Ports: Port 1- Port 8 PoE Power Budget: 110W
Dimensions ( W x D x H )	11.67.11.7 in. (29418044 mm)
Mounting	Rack Mountable
Max Power Consumption	14.72W (110V/60Hz with no PD connected) 131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation	50.22 BTU/h (with no PD connected) 448.41 BTU/h (with 110W PD connected)

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1Mbit
Jumbo Frame	9KB

SOFTWARE FEATURES
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-based GUI Easy Smart Configuration Utility
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG1016PE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

More Information

More Information
EAN	6935364098865
Hight	0.250
Length	0.400
Width	0.080
REDES - System	POE+
REDES - SERIE	16 Ports
Color	Black
Network Equipment	Switch
Ports	16
Data Speed	Gigabit (10/100/1000Mbps)
PoE	Yes
Product Brand	Tplink
