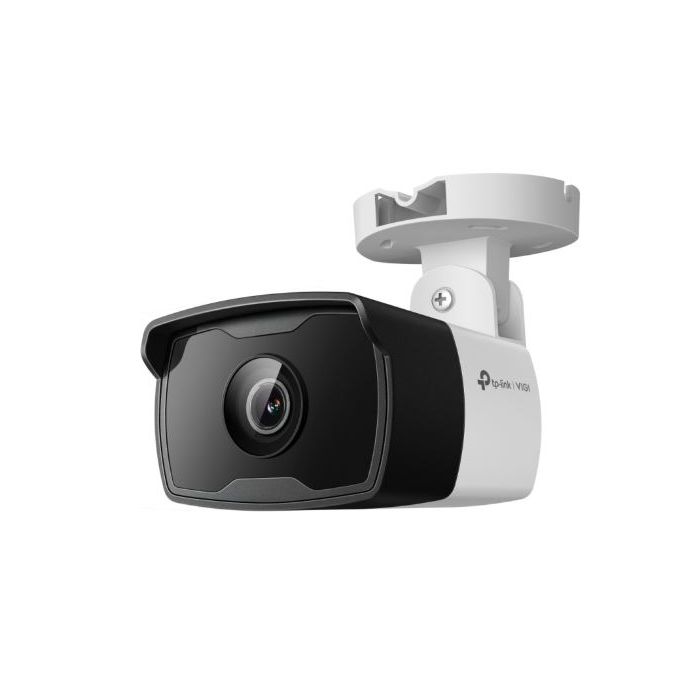

TP-Link Vigi 4MP Fixed IP Bullet Camera 2.8mm IR30m AI Vehicle/Person Detection

SKU
TL-C340I2.8mm
Brands: Tplink
€50.82 Tax included
Tplink
Availability: In stock
24/48 Hours

Tp-Link 4Mpx Fixed 2.8mm IA Vigi Bullet IP Camera

Looking for a security camera that gives you crisp, clear images no matter what the conditions? This camera is just what you need. The C340 is a 4 Mpx bullet IP camera designed to give you the best image quality, thanks to its 4K resolution and 2.8mm fixed lens. Its advanced technology guarantees an impressive night vision, with a range of up to 30 meters.

This camera is very versatile, you can use it at home or for office or business surveillance. It adapts to any environment. It is water and dust resistant with an IP67 rating, making it ideal for outdoors, while its motion detection and human and vehicle classification capabilities ensure you are aware of any intrusion. You will receive notifications when someone accesses restricted areas, manipulates the camera or when objects are removed or abandoned.

Its installation is very simple. It has PoE power supply to power it and transmit data through a single cable, thus reducing installation costs and simplifying wiring. It has H.265+ video compression, which will save storage space without sacrificing image quality.

In summary, this camera is robust, easy to use and offers you peace of mind and round-the-clock protection at a very good price and advanced technology.

Technical Specifications of the TP-Link Vigi 4MP Fixed 2.8mm AI Bullet IP Camera

CAMERA
Image Sensor 1/3" Progressive Scan CMOS
Shutter Speed 1/3 a 1/10000s
Slow Shutter Yeah
Minimum Lighting Color: 0.01 Lux; 0 Lux con IR
Day/Night Mechanism IR cut filter
Day/Night Switch Day/Night/Auto/Schedule Switching
LENS
Type Fixed focal lens
Focal Length 2.8 mm/4 mm/6 mm
Aperture 2.8 mm: F2. 2
4 mm: F2.0
6 mm: F2.0
FOV 2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°

4 mm:
Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7°

6 mm:
Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56°
Lens Mount M12
DORI Distance 2.8 mm:
Detect: 60 m (197 ft)
Observe 25 m (82 ft)
Recon 12 m (39 ft)
Identify 6 m (20 ft)

4 mm:
Detect: 80 m (262 ft)
Observe 33 m (109 ft)
Recon 16 m (52 ​​ft)
Identify 8 m (26 ft)

6 mm:
Detect: 120 m (394 ft)
Observe 50 m (164 ft)
Recon: 24 m (79 ft)
Identify 12 m (39 ft)
VIDEO
Max. Resolution 2560 × 1440
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
640x480, 352x288, 320x240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video compression Main stream: H.265+/H.265/H.264+/H.264
Sub stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main stream supported
H.265 Type Main profile
H.265+ Main stream supported
Video Bit Rate Main stream: 256 Kbps to 4 Mbps
Secondary stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Automatic/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range Pan: -90° to 90
Tilt: -90° to 90
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yeah
Privacy Mask Up to 4 masks
ROI 1 Region
OSD Setting Yeah
AUDIO
Audio Communication N/A
Audio Input N/A
Audio Output N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
RED
Security Password protection, HTTPS encryption, IP address filtering, Digest authentication
Network Storage NAS (NFS, SMB/ CIFS)
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
API ONVIF
Simultaneous live view 3 main flows and 3 secondary flows
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser Google Chrome® 57 and later
Firefox® 52 and later
Safari® 11 and later
Microsoft® Edge 91 and later
Cloud Yeah
ONVIF Yeah
INTERFACES
Network Interface 1 puerto Ethernet autoadaptable RJ45 10/100M
Alarm N/A
Reset Button N/A
Power DC power port
Internal storage N/A
Built-in Microphone N/A
Built-in Speaker N/A
Audio N/A
ALARM AND EVENT MANAGEMENT
Smart Event Person and vehicle classification, Area intrusion detection, Line crossing detection, Person detection, Vehicle detection, Region entry detection, Region exit detection, Abandoned object detection, Object removal detection
Basic Event Motion detection, video tampering detection, exception (illegal login)
Alarm Linkage Push Message
Linkage Method N/A
Output Notification Push Message
GENERAL
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Accessories
Mounting Accessories
Operating temperature -30–60 °C
Storage Temperature -40–60 °C
Storage Humidity 95% or less (non-condensing)
Operating humidity 95% or less (non-condensing)
Material Plastic
General characteristics Two streams, mirroring, privacy masks, email password reset, HTTP listening
Net weight 0.2 Kg
Gross weight 0.35 Kg
Energy consumption Maximum: 5 W
Typical (Day Mode): 1.32 W
Typical (Night Mode with IR LED): 2.68 W
Power Supply 12V DC ± 5%, 5.5mm coaxial power jack
PoE (802.3af/at, Class 0)
Protection IP67
Product Dimensions (L x W x H) 73× 174 × 71 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
More Information
EAN4897098688991
Hight0.200
Length0.400
Width0.200
SECURITY - SYSTEMIP
SEGURIDAD - SERIEBullet
TechnologyIP
ColorWhite
TipeBullet
EntornoExterior
Resolution4MP ~ 2K
OpticsFixed
Product BrandTplink
