TV-FM Through Outlet (24-9.5dB) 47-860Mhz Televes

SKU
TEL5231
Brands: Televes
€5.48 Tax included
Availability: In stock
24/48 Hours

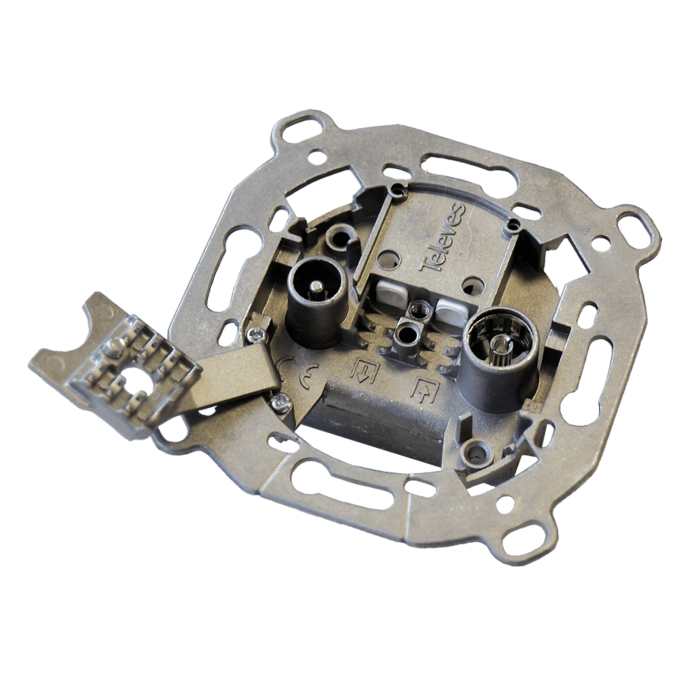

TV-FM Through Outlet Televes 5231

Television outlet with CEI Male output for VHF and UHF (109-862MHz) and CEI Female for FM (87.5-108MHz). This outlet includes through output of low loss for cascading to subsequent outlets.

The TV-FM connections have an attenuation of 24dB and 9.5dB respectively, to compensate for the losses with the other outlet due to the wiring distance and the insert attenuation.

This socket is compatible with Ø 5-7mm RG6 coaxial cables.

-
+

TV-FM through outlet for cascading of the outlet of the house or local.

What technical specifications does the Televes 5132 TV-FM through outlet socket have?

Type A10-MATV
Band FM
(87,5-108MHz)
VHF
(109-470MHz)
UHF
(470-862MHz)
Connector “IEC” Female “IEC” Male
Fastening method W/o screws
Rejection between outputs dB - -
Output pass Yes
Insertion loss dB 1,3
Attenuations Out: FM dB 9,5
Out: TV 24
DC pass (24V – 350mA) No
More Information
EAN 8424450052310
Hight 0.071
Length 0.033
Width 0.072
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT Network Termination
Color Silver
TV-SAT Distribution Equipment Connection
Entorno Interior
TV-SAT Distribution Connection IEC
Outputs 2
Input signal DAB, FM, UHF, VHF
Insertion Loss (dB) 20
Current bypass No
Product Brand Televes
