TV/FM-SAT Intermediate Cascade Outlet 10dB DC pass

SKU
ENGMP6610
Brands: Engel Axil
€4.27 Tax included
Availability: In stock
24/48 Hours

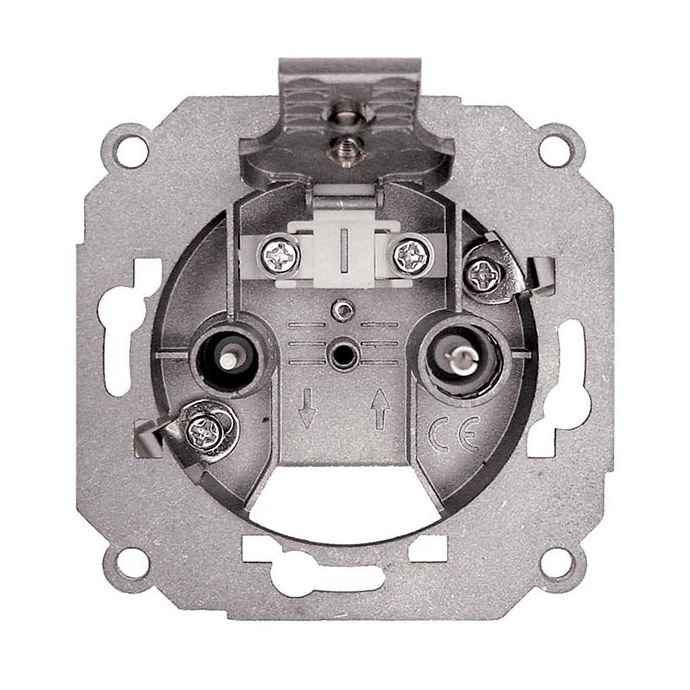

TV/FM-SAT Intermediate Cascade Outlet 10dB with DC step Engel MP6610

Intermediate TV outlet with 2 IEC outputs (TV/FM - SAT) and pass-through output to connect to another cascade outlet. It has an insertion loss of ± 10.5dB and a pass loss of ± 2dB.

The cable tie type connection (screw fixing) makes installation very fast and safe.

It is a outlet adapted for new construction, which complies with the ICT regulations and has a depth reduced by 6.5mm compared to the majority of outlets on the market. Shot with very high shielding and highly reliable SMD technology.

-
+

Standard Outlet (TV / FM-SAT) of Intermediate Cascade 10dB with DC pass

What are the main features of the Engel MP6610 Outlet?

  • Box designed for Digital TV
  • Standart range with removable top cover
  • Follow the ICT regulation
  • Very low pass attenuation and high directionality
  • Quick and safe installation (Fixing with screws)
  • Very high shielding and highly reliable SMD technology
  • Adapted for new construction and very narrow rehabilitation 54mm between claw end
  • Depth reduced by 6.5mm compared to the market
  • "Double connector" models with wide and flat frequency response (244Mhz) on the IEC connectors (m / h)
  • "Triple connector" model with response separated by bands (TV, FM and FI)




What technical specifications does the Engel MP6610 Outlet?

  • Type: Cascade - intermediate
  • IEC-h output (47Mhz): 10.1 ± 0.4dB
  • IEC-h output (862Mhz): 10.5 ± 0.6dB
  • IEC-h output (950Mhz): 10.5 ± 0.7dB
  • IEC-h output (2150Mhz): 10.8 ± 0.7dB
  • Step loss 47dB: 1.4 ± 0.25dB
  • Loss step 900dB: 1.7 ± 0.5dB
  • Loss step 2150dB: 2.9 ± 0.7dB
More Information
EAN 8435055700223
Hight 0.080
Length 0.040
Width 0.080
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT Network Termination
Color Gray
TV-SAT Distribution Equipment Connection
Entorno Interior
TV-SAT Distribution Connection IEC
Outputs 2
Input signal FI, FM, UHF
Insertion Loss (dB) 10
Current bypass Yes
Product Brand Engel Axil
