UAP Fiber Optic 2 output SC/APC + 2 Fiber 55m Televes

SKU
TEL231543
Brands: Televes
€35.79 Tax included
Availability: In stock
24/48 Hours

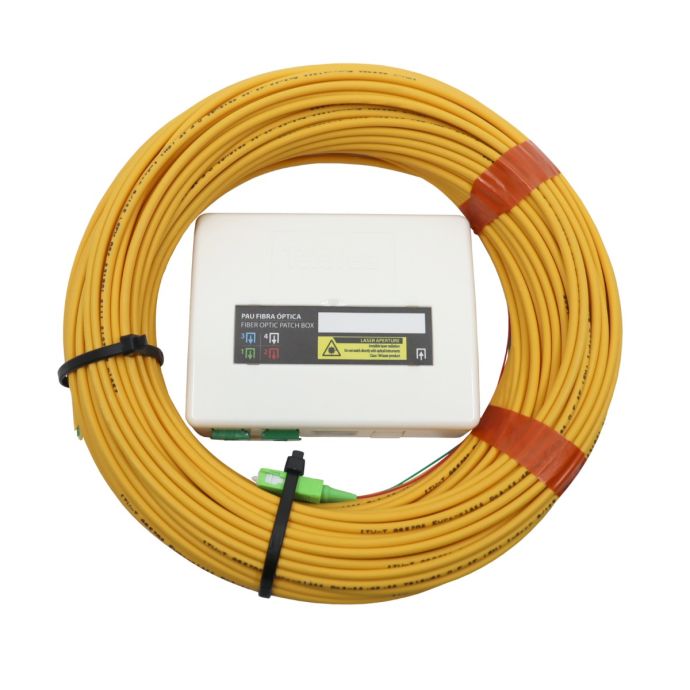

Fiber Optic UAP 2 SC/APC outputs + 2 fibers 55 Meters Televes 231543

Single-mode fiber UAP, with the capacity to connect 2 SC/APC outputs, with 2 pre-connected 55-meter fibers.

Indicated to locate in RTR (Network Termination Registry) in ICT2 new construction works or in other types of facilities (connection cabinets, workshops, old construction buildings). Easy to install for the installer for FTTH applications (fiber to the home), since it is not necessary to make connections in each PAU, needing to merge only in the lower connection point of the building.

Since this fiber optic PAU is pre-connected at one end only, the installation is done from the RTR to the secondary register and when it reaches the telecommunications enclosure, it is connected to the network interconnection register, performing a fusion with a pigtail. If there is a lot of excess cable, the excess is normally cut before performing the fusion with the pigtail so that the installation is perfectly finished and tidy.

The kit also includes the 55m fiber cable, 2 heat-shrink sleeves, 2 flanges and the necessary hardware for installation.

-
+

UAP Fiber Optic 2 outputs SC/APC with 2 Fibers of 50 Meters

What are the main characteristics of the UAP FO Televes 231543?

  • Made of resistant ABS plastic
  • Capable of up to 4 SC/APC output connectors
  • Multi-anchor: DIN rail, wall or socket
  • ITU-T G657A2 singlemode fibers
  • With identification label
  • Includes 2 "SC/APC" female to "SC/APC" female adapters (with self-locking cap)
  • 100% European quality: manufactured by Televes in Spain Euroclass Dca-s2, d2, a2
  • White color (RAL 9003)
  • 6 pre-cut entrances on their sides, for FO access
  • Rear input for SC connector
  • Rear input for FO and SC connector
  • Entrance pre-cut at the bottom, for access to the possible dispatcher (SC/APC)
  • Included are: 2 heat-shrink sleeves, 2 flanges, hardware for installation
More Information
EAN 8424450251409
Hight 0.250
Length 0.080
Width 0.250
System DTT Optic Fiber
Serie 55m
Fiber type Singlemode
Entorno Interior
Color White
Product Brand Televes
Write Your Own Review
You're reviewing:UAP Fiber Optic 2 output SC/APC + 2 Fiber 55m Televes
Your Rating
File Label Size Download
pdf Ficha técnica de los PAU televés 231540/231541/231542/231543 1.5 MB Download
