UAP Splitter 4 Outputs F 9.5dB Tecatel

SKU
TECPAUCLA4S
Brands: Tecatel
€5.45 Tax included
Availability: In stock
24/48 Hours

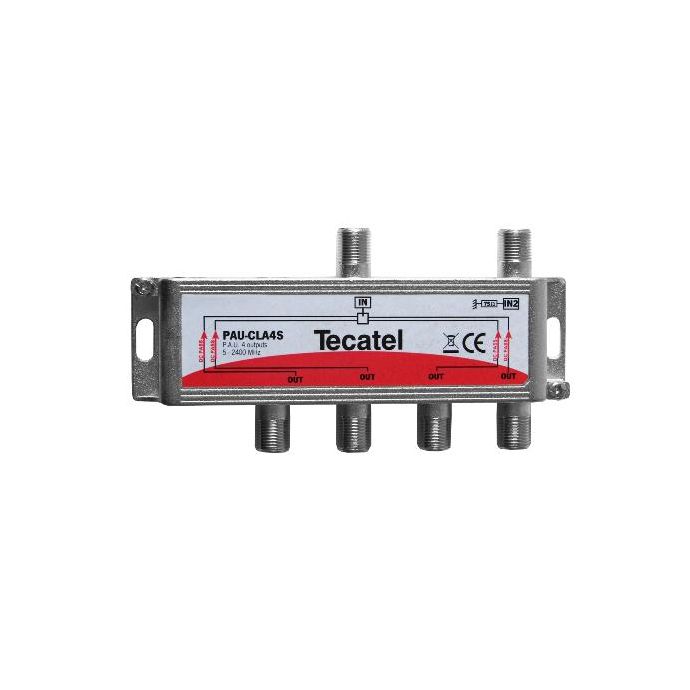

Tecatel User Access Point 2 Inputs-4 Outputs TECPAUCLA4S

This device, called PAU or user access point, is used to distribute the television signal inside your home. This element makes the connection between the building's network and the user's internal network.  This PAU distributor is only installed in communal building installations that comply with ICT regulations, which require the user to receive 2 verticals of the radio-television network.



It has 2 inputs (one of them with a 75 Ohms load) and 4 outputs, all of them with OUT-IN current flow. This PAU has an insertion loss of 9.5 dB at 690 MHz.



The PAU is housed in a shielded, all-metal, zamak enclosure, providing low attenuation. Both the inputs and outputs of this access point have F-connection, which allows for easy threaded mounting.

-
+

Technical Specifications Tecatel 2 Inputs-4 Outputs User Access Point TECPAUCLA4S

What technical specifications does the UAP Tecatel PAU-CLA4S have?

  • Reference: PAU-CLA4S
  • No. outputs: 4
  • Insertion losses:
    • 5-47 MHz: 8.5 dB
    • 47-1000 MHz: 9.5 dB
    • 1000-1750: 10.5 dB
    • 1750-2300: 12 dB
    • 2300-2400: 13 dB
  • Isolation between outputs:
    • 5-47 MHz:> 18 dB
    • 47-1000 MHz:> 21 dB
    • 1000-1750:> 21 dB
    • 1750-2300:> 20 dB
    • 2300-2400:> 18 dB
  • Return losses:
    • 5-47 MHz: 10 dB
    • 47-1000 MHz: 12 dB
    • 1000-1750: 10 dB
    • 1750-2300: 11 dB
    • 2300-2400: 10 dB
  • Dimensions: 120x60x16 mm
  • Weight: 95 gr.
More Information
EAN 8430549028883
Hight 0.130
Length 0.030
Width 0.070
DTT System DTT & SAT Distribution
MANUFACTURER SERIES DTT F-connector
TV-SAT Distribution Equipment UAP
Entorno Interior
TV-SAT Distribution Connection F
Outputs 4
Insertion Loss (dB) 10
Product Brand Tecatel
