UAP Splitter 5 Outputs F 12.5dB Tecatel

Name: UAP Splitter 5 Outputs F 12.5dB Tecatel
Brand: Tecatel
SKU: TECPAUCLA5S
Price: 7.82 EUR
Availability: InStock

SKU

TECPAUCLA5S

Brands: Tecatel

€7.82 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

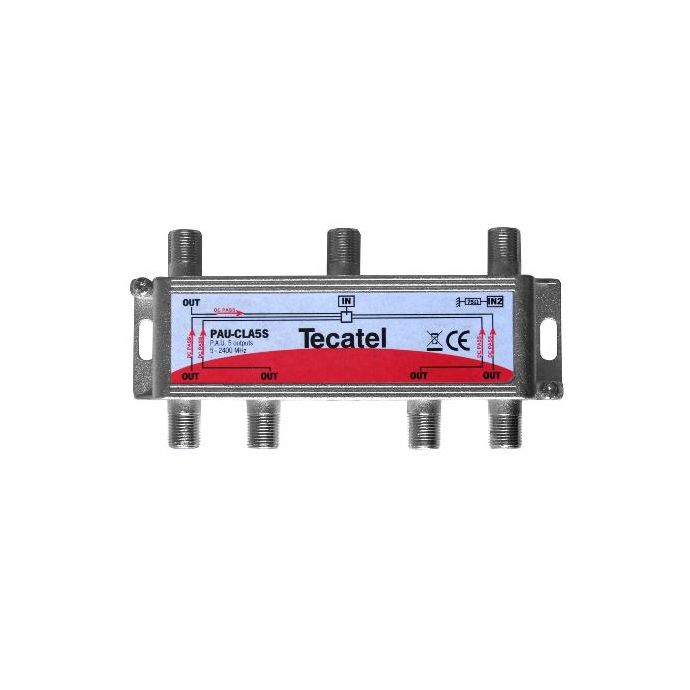

UAP Splitter 5 Outputs 12.5dB Tecatel PAU-CLA5S

Tecatel F connection User Access Point, with 5 outputs and 12.5dB attenuation. Passive equipment for TV-SAT (5-2400 MHz) distribution, with high quality Zamak shielding.

Distributor + PAU for collective TV-SAT installations according to ICT regulations. It has an additional input loaded (75Ω) to connect the second coaxial downcomer.

Details

UAP Splitter 5 Outputs 12.5dB type "F" for TV-SAT (5-2400 MHz) community ICT distribution

What technical specifications does the UAP Tecatel PAU-CLA5S have?

Reference: PAU-CLA5S
No. outputs: 5
Insertion losses:

5-47 MHz: 10 dB
47-1000 MHz: 10.5 dB
1000-1750: 12.5 dB
1750-2300: 15 dB
2300-2400: 15.5 dB

Isolation between outputs:

5-47 MHz:> 18 dB
47-1000 MHz:> 20 dB
1000-1750:> 20 dB
1750-2300:> 20 dB
2300-2400:> 19 dB

Return losses:

5-47 MHz: 10 dB
47-1000 MHz: 12 dB
1000-1750: 11 dB
1750-2300: 10 dB
2300-2400: 10 dB

Dimensions: 120x60x16 mm
Weight: 99 gr.

More Information

More Information
EAN	8430549028890
Hight	0.030
Length	0.060
Width	0.120
DTT System	DTT & SAT Distribution
MANUFACTURER SERIES DTT	F-connector
TV-SAT Distribution Equipment	UAP
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	5
Insertion Loss (dB)	12
Product Brand	Tecatel
