UHF Antenna for SMARTNOVA Motorhomes or Boats from Televes

SKU
TEL144710
Brands: Televes
Free shipping
(Iberian Peninsula)
Availability: Out of stock
Consult

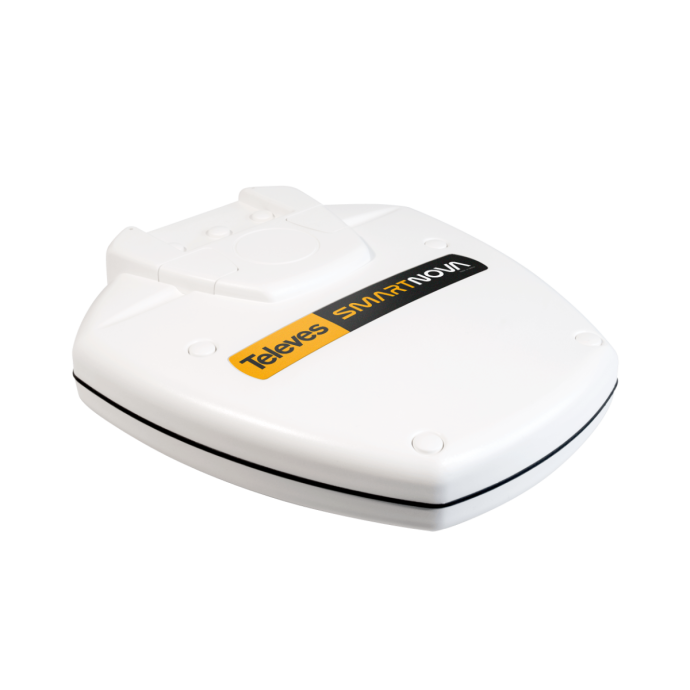

Televes Smartnova Omnidireccinoal DVB-T antenna for Motorhomes

Introducing the new Televes Smartnova DTT antenna, an intelligent antenna that adapts the signal automatically, optimizing the signal quality according to environmental conditions, avoiding problems with too weak or strong signals. Orientation problems disappear by completely covering the entire horizon thanks to its 360º reception.

This antenna is ideal for campers, boats, motorhomes or people who constantly change location.

Its special design, which differentiates it from other antennas on the market, is that it includes 3 sub-antennas, which increase the signal quality and double the output level. It manages to balance the TV signal with a high selectivity between adjacent channels, through its 32 filters that reach 28dB of selectivity between adjacent channels. It has LTE filter that rejects telephony interference from channel 48.

It is an automatic and omnidirectional antenna with a gain of 50dB. Thanks to its self-programming function, the Smartnova antenna is able to detect, program, adjust and balance the best TV channels by itself, even if we change location and it will be as easy as programming the antenna from the mobile with the ASuite app, conveniently and quickly. The power can be turned off with the ASuite app, reducing power consumption when we are not using it.

The Smartnova antenna can be powered from the mains or from the vehicle battery. It is very robust, weatherproof and watertight, with an IP53 rating, which will prevent degradation over time.

Package contents:

  • Smartnova antenna
  • Antenna Power Supply 9.5V with Jack Connector
  • 12V power supply for AC power supply
  • Straight bracket for antenna installation
  • 3 F connectors(4171)
  • 3 Screws and allen wrench 3mm

Technical Specifications of the Smartnova Omnidirectional DTT Antenna for Motorhomes from Televes

Bands
UHF
Frequency range MHz
470 ... 694
Channels
21 ... 48
Revenue dBi
50
Output level
Auto*1
Polarization   Horizontal
Supply voltage Vdc 9,5
Max current mA 600
Protection index (IP)   53
Wind load (@130Km/h) N 74,88
Wind load (@150Km/h) N 102,96
TV-MIX source frequency range MHz 47 ... 862
SAT-MIX source frequency range MHz 950 ... 2150
Power supply output voltage Vdc 9,5
Max output current of the source mA 600
Source insertion loss dB < 2
Supply input voltage Vdc 12 ... 24
Max power supplied by the source IN 6,7
Source protection index   20
Operating temperature of the source °C -5 ... 45
DC step of the source by SAT-MIX input mA 500
More Information
EAN 8424450306246
Hight 0.000
Length 0.000
Width 0.000
Antenna Type DTT DTT
MANUFACTURER SERIES DTT Nova
Type DTT 5G
Entorno Exterior
Orientation Omnidirectional
Gain High
Dipole Active
LTE compatible No
Supply required Yes, included
Feed Power 12 Vc
Product Brand Televes
