Shielded Mast Amplifier 2in UHF-VHF 40-30dB LTE 5G

SKU
ENGAM6212G5
Brands: Engel Axil
€25.12 Tax included
Availability: In stock
24/48 Hours

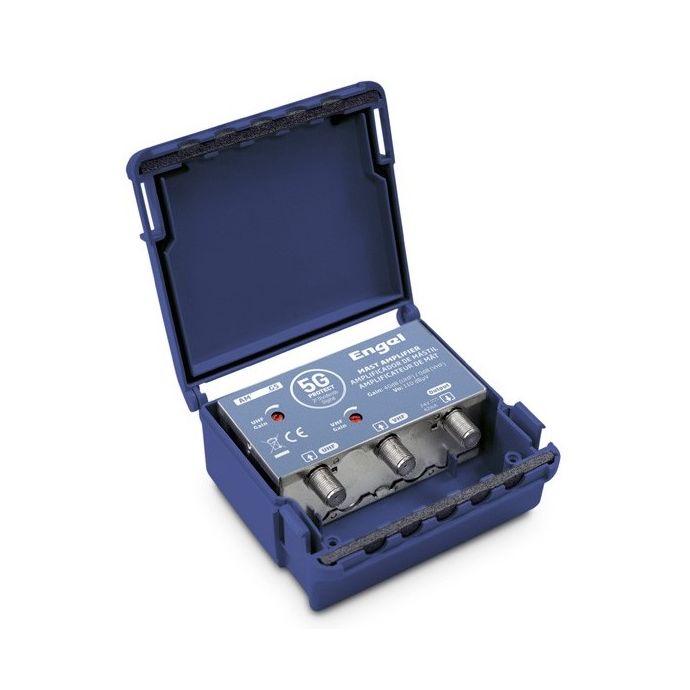

Mast Amplifier UHF/VHF 40dB LTE 5G Engel AM6212G5

Amplifier for installation on the DTT antenna mast, has 2 inputs (UHF-VHF/FM/DAB).

Offers a high gain of 40dB for UHF and 30dB for VHF; manually adjustable (0..20 dB). Supports a maximum output level of 108 dBμV.

This amplifier must be powered at 24Vdc and has a consumption of 40mA.

All its connections are type F coaxial.

-
+

Shielded Mast Amplifier 2 inputs (UHF-VHF) and Gain 40-30 dB, with 5G LTE filter

What technical specifications does the Engel AM6212G5 Mast Amplifier have?

  • Inputs: 2 (BI / BIII / UHF)
  • Frequency: 40-70 / 160-240 / 460-694 MHz
  • Gain: UHF: 40dB / BI-BIII: 30dB
  • Gain regulation range: 0-20 dB
  • Maximum output level: 108 dBμV
  • Power / consumption: 24V / 40mA
  • Noise factor: VHF: 4 / UHF: 3.5
  • Connection: "F" Type Connectors
More Information
EAN 8434128002400
Hight 0.200
Length 0.060
Width 0.110
DTT System DTT Amplifier
MANUFACTURER SERIES DTT F-connector
Color Blue
Type Mast amplifier
Entorno Exterior
# Inputs 2
Outputs 1
Gain 40
Max. output level Ganancia (dB/uV) 108
LTE compatible Yes
Current bypass Terrestrial
Product Brand Engel Axil
