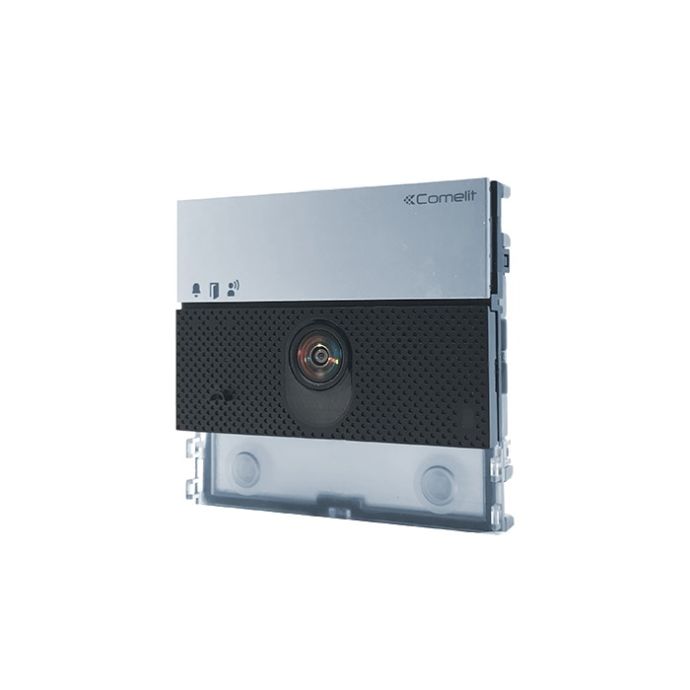

Ultra Series Audio/Video Module for Comelit VIP System

Module for Ultra series entrance panel, with IP system (VIP). The module incorporates both audio and video. Prepared for two call buttons.

The module is very simple to install and configure, since its buttons are intelligently programmed. Its digital microphone is omnidirectional, so the caller's sound will be heard with great quality. Additionally, the module includes a dual speaker for high-fidelity audio. It has a twilight sensor to automatically turn off the backlight on the card holders.

Its camera is color and has a field of view of 160º horizontally and 90º vertically, in wide angle mode, so the field of view is much larger.

The module comes in both a recessed version and a wall installation. Dimensions: 1 Ultra module.

Technical Specifications of the Ultra Series Audio/Video Module for Comelit VIP System





IP (VIP) ULTRA AUDIO/VIDEO MODULE

GENERAL DATA

Type

Modular

Height (mm)

90

Width (mm)

100

Depth (mm)

35

Product color

Aluminium, Black RAL9005, Transparent

Product weight (g)

395

Type of finishing materials

Polycarbonate, Aluminium alloy

Flush-mounted

Yes, with a dedicated accessory

Wall-mounted

Yes, with a dedicated accessory

COMPATIBLE SYSTEMS

Vip system

Yes

AUDIO FEATURES

Microphone

MEMS audio digital sensor, omnidirectional

Loudspeaker

28mm (Ø), 8 Ohm, 1W (2)

Technologies implemented

Echo canceling, Noise reduction

Audio compression

G.711 A-Law

CAMERA FEATURES

Camera

Colours

Sensor type

1/2.7" CMOS - 2MP

Lens optical dimensions (mm)

1,6

Angle of view (H x V - °)

160 x 90

Video resolution (H x V - pixel)

320x240, 480x272, 800x480, 1024x608

Video compression

H.264 baseline

RTSP server

Yes

Maximum number of RTSP client

4

RTSP resolutions

1024x608, 800x480, 480x272, 320x240





More Information
EAN8023903400021
Hight0.100
Length0.050
Width0.100
ACCESOS - SISTEMAIP
ACCESOS - SERIEULTRA
ColorSilver
Color Portero/VideoporteroColor
Typereplacement
Product BrandComelit
