Ultra UT9260M Digital Directory Module with Display

SKU
COMUT9260M
Brands: Comelit
€276.47 Tax included
Free shipping
(Iberian Peninsula)
Availability: In stock
24/48 Hours

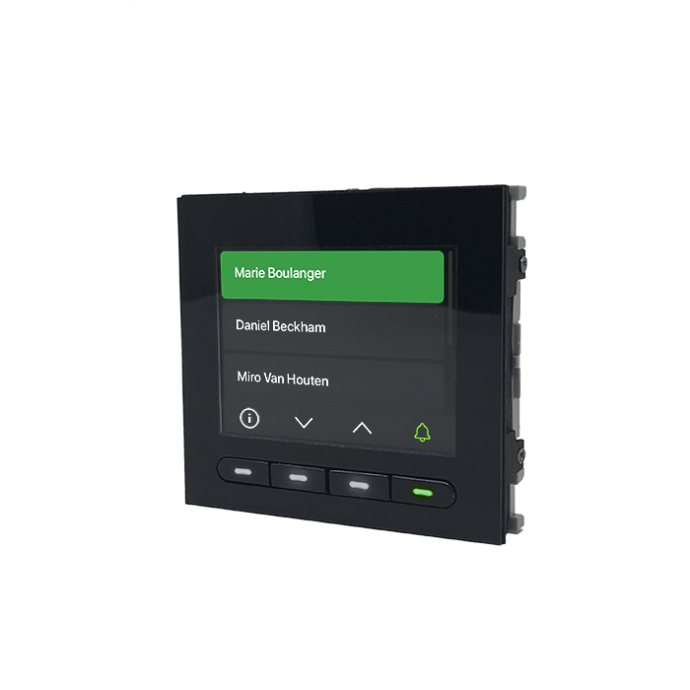

Digital Directory Module with 3.5” Screen Ultra Series UT9260M

Module for Ultra series entrance panel with 3.5” screen compatible with all systems. The connection to manage the names is made via bluetooth with the installer's MyComelit mobile application.

The module consists of a 3.5” LCD screen with a resolution of 320x240. In addition, it has 4 mechanical buttons to select the user or the call. One of the buttons can be customized to make a direct call to the switchboard, commercial activities, activation of the light or activation of an opening. The buttons have a backlight that can be adjusted.

The module is suitable for outdoors with an IP65 degree of protection and is also anti-vandal with an IK08 index.

Dimensions: 100x90x35mm

-
+

Technical Specifications of the Digital Directory Module with 3.5” Screen Ultra Series UT9260M



DIGITAL DIRECTORY MODULE WITH ULTRA DISPLAY
GENERAL INFORMATION
Type Modular
Height (mm) 90
Width (mm) 100
Depth (mm) 35
Product weight (g) 400
Type of lining material polycarbonate
Product color Black RAL9005,Transparent
Flush mounting Yes, with a dedicated accessory
Wall mount Yes, with a dedicated accessory

COMPATIBLE SYSTEMS

Audio/video Simplebus 2 with power supply art. 4888C Yes
Audio/video Simplebus 2 with power supply art.. 1210/1210A Yes
Audio/video Simplebus 2 with power supply art. 1210/1210A Yes
Audio Simplebus 1 Yes
ViP Yes
SCREEN
Screen type LCD,graphic
Display size (") 3,5
Resolution (píxel) 320x240
ELECTRICAL CHARACTERISTICS
Power supply type Power supply from the video door entry bus
Supply voltage 33VDC
Standby absorption (W) 1,3
Maximum absorption (W) 2
DIGITAL DIRECTORY MODULE WITH ULTRA DISPLAY
HARDWARE FEATURES
Call type Digital
Buttons type Mechanic
number of buttons (n°) 4
Backlight color Black
Terminals D+ D- GND
SETTINGS
Display backlight Yes
Backlight brightness Yes
RED Y PROTOCOLOS DE COMUNICACIÓN
Bluetooth Yes
PROGRAMMING MODE
Software ViP Manager Yes
ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS
IP protection index IP65
Vandal Resistant Rating (Code IK) IK08
Operating temperature (°C) -25 ÷ 55
Operating humidity (RH max) (%) 25 ÷ 95
Environmental class IV
CE certifications RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
More Information
EAN 8023903400137
Hight 0.150
Length 0.100
Width 0.120
VIDEOPORTERO - SISTEMA VDS
SERIE ULTRA
Color Black
Type Accessories
Product Brand Comelit
Write Your Own Review
You're reviewing:Ultra UT9260M Digital Directory Module with Display
Your Rating
File Label Size Download
pdf Ficha Técnica Módulo Directorio Digital con Pantalla Ultra Ut9260m 1 MB Download
