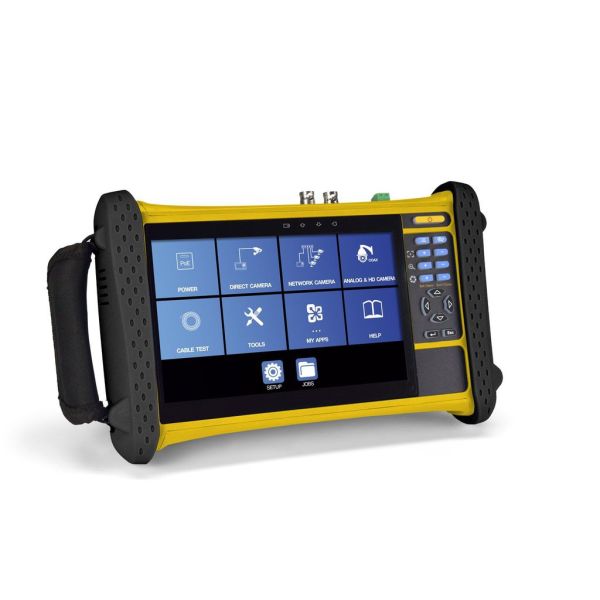

Universal CCTV IP/HD PoE+ Tester

Universal Tester for IP, HD and Analog Security Cameras (CCTV) with PoE+ and DC 12V

What are the main features of the Promax IC-073B CCTV Tester?

• Full HD touch screen (1920 x 1080 pixels).
• Installation of 4k cameras: Digital zoom that allows you to enlarge the image on the screen.
• Quick access menu to main functions.
• Ergonomic, can be used with one hand.
• Up to 10 hours of autonomy.
• Cable length up to 100 meters.
• 10 GB of internal memory, expandable via an integrated microSD card reader.

Promax Universal CCTV Tester IC-073B Features:

• Solve PoE + problems
• View in real time the PoE + consumption of the connected camera, the voltage in pairs and the total power consumed.
• AHD / CVI / TVI input
• In addition to analog video. It includes from the most common analog inputs to those of HD cameras over coaxial.
• Security monitors
• The instrument has an analog output port and generation of standard charts, to configure safety monitors.
• 12V DC power
• Power any camera using the built-in 12V / 2A DC power.
• PoE + power supply
• The RJ-45 network port provides PoE + (up to 24 W) to the camera using the tester's internal battery in the event that power over the network is not available.
• HDMI input
• Connect to any HDMI output for troubleshooting between network video recorder and monitor. Eliminate the need for an external monitor.
• HDMI output
• Display the tester screen on a larger monitor using HDMI for clearer images.
• Audio input port
• Check cameras with microphone through the tester's internal speaker.
• Audio output
• Do you work in a noisy environment? Connect a pair of headphones to listen to the camera audio from the tester.
• Data Cable Testing
• The RJ-45 port allows you to run wiremaps on unshielded twisted pair (UTP) data cables. Identify crossovers as well as common wiremap faults using the plotter / remote.
• USB charging
• High-power USB port (2A) to quickly charge devices such as mobile phones or tablets.
• MicroSD slot
• Transfer test reports or import software updates using microSD cards.
• RS-485 input / output
• Control and program PTZ (Pan / Tilt / Zoom) cameras and monitor incoming PTZ control signals for troubleshooting.
• Built-in flashlight
• LED flashlight with customizable automatic shutdown between 5 and 60 minutes
