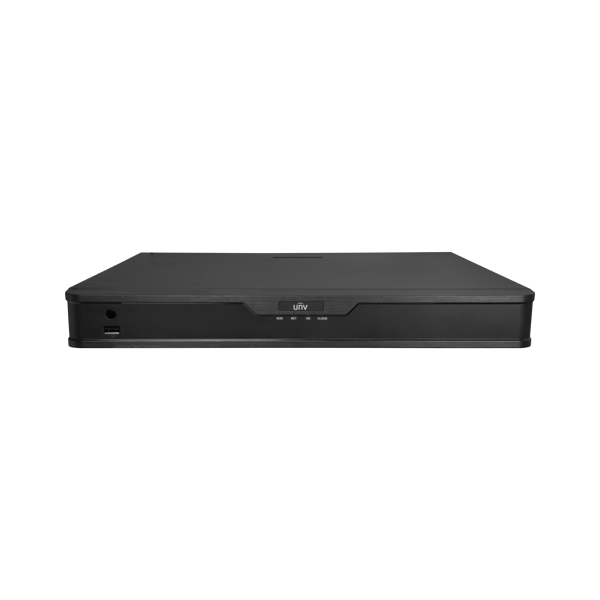

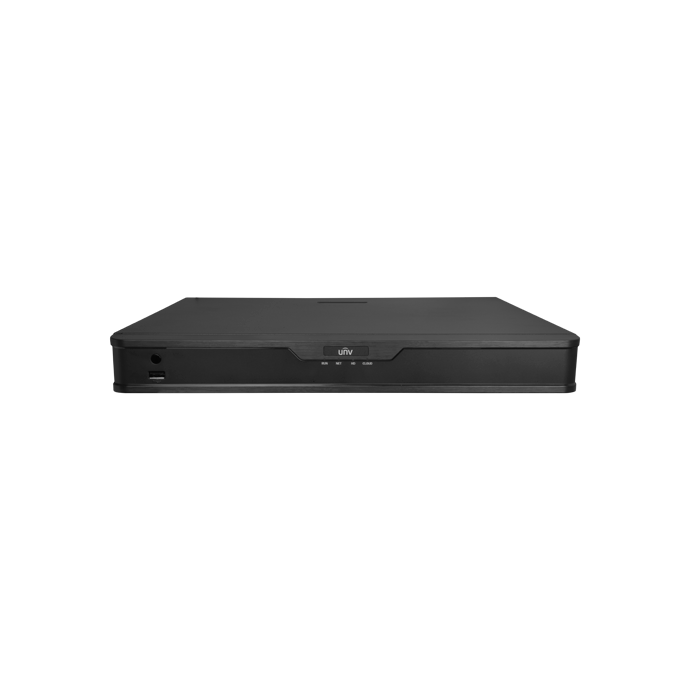

Uniview 32-Channel 8MP NVR Recorder

SKU
UV-NVR304-32S
Brands: Uniview
€184.65 Tax included
Uniview
Availability: On request
1 to 7 days

Uniview 8Mpx 32 Channels NVR Recorder

This network video recorder (NVR) is designed to manage and store images from up to 32 IP cameras simultaneously. This device is essential in modern video surveillance systems, allowing efficient recording, playback and management of multiple cameras from a single platform.

Ideal in companies or offices, stores, stores or educational institutions, to monitor spaces, entrances and exits, points of sale, surveillance in corridors, courtyards.

It is compatible with Ultra265, H.265 and H.264 compression formats, optimizing the use of bandwidth and storage. Capable of connecting up to 32 IP video channels, facilitating the integration of multiple cameras into a single system.

It has HDMI and VGA outputs that can operate simultaneously, supporting a maximum recording resolution of up to 8Mpx. Supports up to 4 x 10TB SATA hard drives, providing high storage capacity for long-term recording.

Includes technologies such as ANR that ensure storage reliability even when the network is disconnected.

Technical Specifications of the Uniview 32-Channel 8MP NVR Recorder

Brand Uniview
Range Easy
Inputs for IP cameras LAN port up to 32 channels
Power over Ethernet Does not have
IP compatible cameras UNIVIEW, ONVIF
Bidirectional audio 1 input / 1 RCA output
Video outputs 1 HDMI 4K, 1 VGA
Video compression format Ultra H.265 / H.265 / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200 1280x1024, 1280x720, 1024x768
Total bandwidth 160 Mbps downstream / 64 Mbps upstream
Main Stream recording 8Mpx / 5Mpx / 4Mpx / 3Mpx / 1080p / 960p / 720p / 960H / D1 / 2CIF / CIF
Alarms Does not have
Recording method Manual, programmed, motion detection
Intelligent functions People Counting, Face Detection, Intrusion Detection, Line Crossing, Scenery Change, Blur Detection, Auto Tracking, Removed object, Abandoned object
Smart Intrusion Prevention Available at 8 channels
External Backup USB / HDD USB memory
Internal memory 2 SATA HDD 3.5" of up to 6 TB (not included)
Communication 2 x USB 2.0 / 1 x USB 3.0 / 2 x RJ45 (Ethernet)
Remote access EZStation Web Browser, Smartphone App and PC Software
Power DC 12 V / 15 W, 50/60 Hz
Dimensions / Weight 50 (H) x 440 (W) x 344 (D) mm / 3.15 Kg
More Information
Hight0.100
Length0.500
Width0.400
SECURITY - SYSTEMIP
SEGURIDAD - SERIE8Mpx
IncludedMouse, Power supply
Event notifierNo
No. CCTV Recorder Inputs32 IP
Audio in ports1
Product BrandUniview
