Category 6 UTP data cable on 1000m coil and violet color LSFH
The Televes 2123 data cable is a category 6 cable composed of an inner conductor of copper and high density expanded polyethylene insulation.
This data cable is perfect for the installation of data networks, such as internet connection, surveillance camera installations of balums and installations of porters and video door phones.

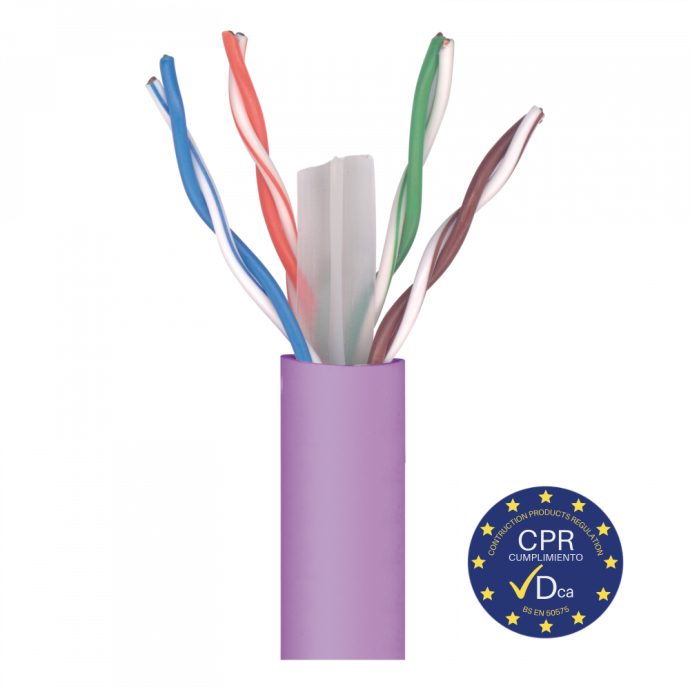

The Televes 2123 data cable is composed of 4 pairs of copper wires, intertwined two to two, housed in cavities, protected by an outer cover of violet LSFH.
What technical features does the 2123 data cable have?
Tipo
UTP Cat 6 LSFH
Cubierta exterior
LSFH
Diámetro externo
mm
6,2±0,2
Color de la cubierta
Violeta
Número de pares
4
Conductor
Cu
Diámetro del conductor
mm
0.57
Aislamiento del conductor
PE
Resistencia máxima del conductor
Ω/100m
6,8
Impedancia nominal
Ω
100
Metros / carrete
m
1000
What is a data cable used for?
Televes 2123 data cable can be used for various installations. This cable can be used for the installation of a data network, such as the internet connection, for the installation of a circuit of video surveillance by balums or for the installation of a porter or video entry system.
How to make our own data cable?
In order to connect a data cable, we need the cable in question, RJ45 connectors, a crimp for the connection of the connector to the cable and a peeler for data cables.
