VDS Mini Video Distributor 2 Outputs Fermax

SKU
FER3260
Brands: Fermax
€33.82 Tax included
Availability: In stock
24/48 Hours

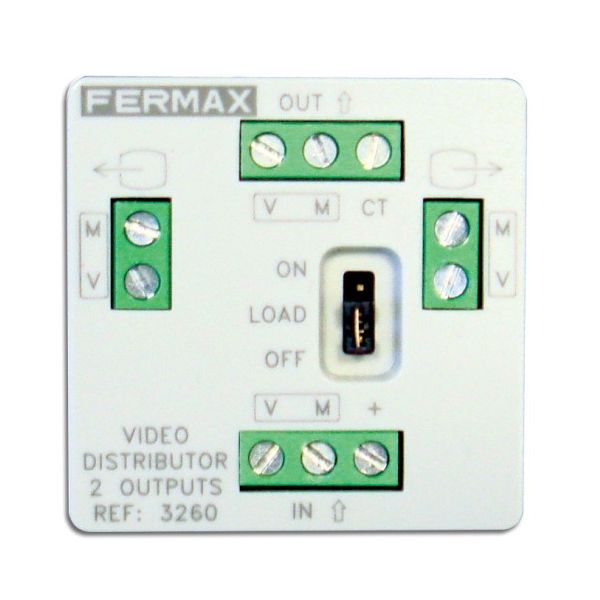

Mini VDS Video Distributor 2 outputs Fermax 3260

This mini video distributor allows the derivation in plant of the video signal (VDS) up to 2 monitors. It includes the possibility of putting or removing the final load to adapt the impedance of the line.

You have the option of constantly feeding the distributor through a voltage of 18Vdc from the VDS power supply, or through the Ct signal of the monitors to which it sends the video signal, operating only when one of the monitors is active.

Of this distributor, its small size stands out, designed to be installed in mechanism boxes or in areas with little space. It fastens cables up to 1.5mm2 in section and is not recommended for installations with coaxial cable due to its difficult fastening.



-
+

2 Output Mini Video Distributor for VDS installations

What technical specifications does the Fermax 3260 Video Distributor have?

  • Power supply:+ 10 -18 Vdc.
  • CT: control output for the activation of the camera and other devices, powered via the «+» distributor terminal’s monitor Ct
  • Active Consumption: 25 mA
  • Output Impedance to be selected with the JP1 Jumper: 75 ohms.
  • Video input: 0,8-1,6 Vpp
  • Output Tension: 0,8 dB
  • Bandwidth: 8 MHz
  • Body Size: 44x44x16 mm
More Information
EAN 8424299032603
Hight 0.120
Length 0.020
Width 0.080
System VDS
SERIE Spare
Color White
Color Portero/Videoportero Color
Type Accessories
