Video Distributor 2 Outputs 4 + N

SKU
FER2448
Brands: Fermax
€33.82 Tax included
Availability: In stock
24/48 Hours

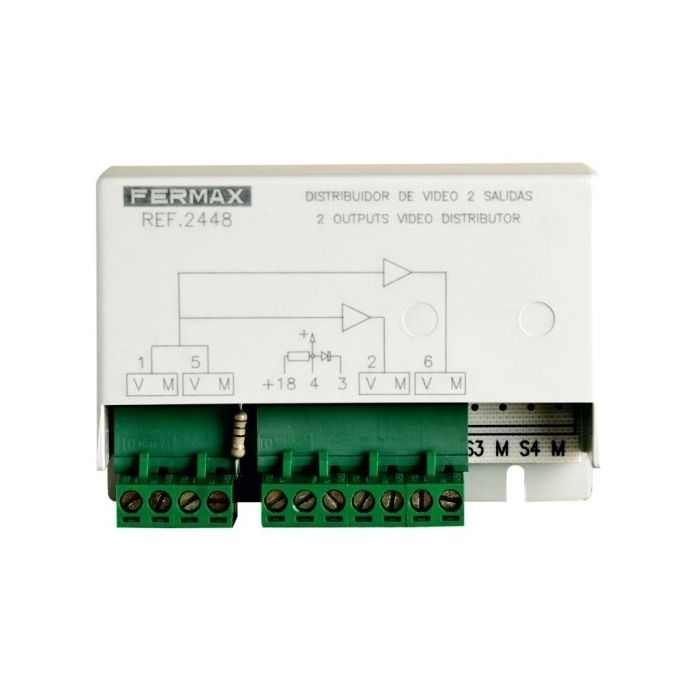

Video Distributor 2 Outputs 4 + N Fermax 2448

The 2-output video splitter is used for 4 + N video distribution on different outputs. With its small size, it allows it to be placed in electrical registers, in addition to having adhesive strips for its fixation, it can be embedded in 10x10 cm boxes or if you prefer to screw it directly to the wall.

It is recommended for buildings with approximately 50 neighbors (small / medium size).

Note: Available in 2 and 4 outputs.

-
+

2 Output Video Distributor

What are the technical specifications of the Fermax 2448 Video Distributor?

  • Doorphone: 4 common wires + N (1 call wire per dwelling).
  • Video intercom: 7 common wires + 1 video coaxial + N (1 call wire per home).
  • The distributors incorporate a 75 ohm load resistance
  • - by Ct (4): 8-14 Vdc.
  • - by (+18): 15-24 Vdc.
  • Video input: 0.8-1.6 Vpp
  • Dimensions: 62x85x20 mm (height-width-depth).
  • System power supply: Audio: 12 Vac; Video: 18 Vdc





More Information
EAN 8424299024486
Hight 0.100
Length 0.070
Width 0.080
System 4+N
SERIE Spare
Color White
Type Accessories
Product Brand Fermax
