4 Outputs Video Distributor 4+N

SKU
FER2449
Brands: Fermax
€38.54 Tax included
Availability: In stock
24/48 Hours

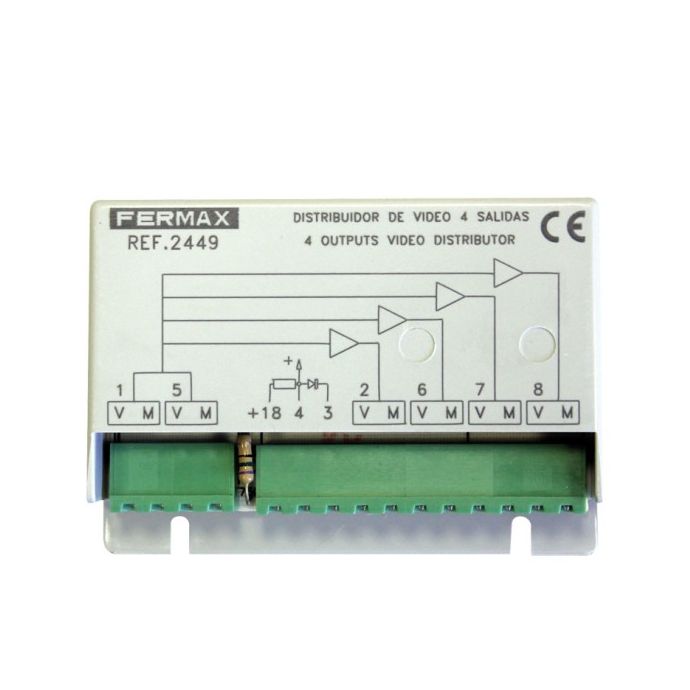

Fermax 2449 Video Distributor of 4 Outputs

Equipment to perform video distribution in 4 outputs, for Fermax ADS and 4+N video door entry systems.

It must be installed in all branches of the video signal, recommended for buildings with up to 50 neighbors (approx.) With several entrances and concierge; and for urbanizations with a general entrance and several interior blocks.

Its small size facilitates its installation in electrical registers. They can be embedded in 10x10 cm boxes. They have adhesive strips for fixing, they can also be screwed to the wall.

-
+

4 Output Video Distributor for Fermax ADS / 4+N Video Doorphone systems

What technical specifications does the Fermax 2449 Video Distributor have?

  • The distributors incorporate a load resistance of 75 ohms, which will need to be cut only when step output # 1 is being used, that is, it will be cut in all cascade distributors, except for the last one on the trunk.
  • Cabling:
    • Doorphone: 4 common wires + N (1 call wire per dwelling).
    • Video intercom: 7 common wires + 1 video coaxial + N (1 call wire per home).
  • Maximum distance in the installation depending on the section of the cable used (consult technical manuals)
  • Feeding:
    • by Ct (4): 8-14 Vdc.
    • by (+18): 15-24 Vdc.
  • Input impedance: 75 ohms.
  • Video input: 0.8-1.6 Vpp
  • Dimensions: 62x85x20 mm ((height-width-depth).
  • System power:
    • Audio: 12 Vac
    • Video: 18 Vdc
More Information
EAN 8424299024493
Hight 0.130
Length 0.060
Width 0.070
System 4+N
SERIE Spare
Product Brand Fermax
