Video Surveillance Kit: 108-W Recorder + 4 Bullet Cameras + 4-Port WiFi Router + 1T Ajax Hard Drive

SKU
AJ-NVRKIT108B-2W
Brands: AJAX
€427.95 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Video Surveillance Kit: AJ-NVR108-W Recorder + 4 UV-UHO-B1R-M2F3 Bullet Cameras + RG-EW1200 4-Port WiFi Router + Ajax 1T Hard Drive

Kit to assemble your closed circuit television with everything you need such as cameras, recorder, hard drive and router.

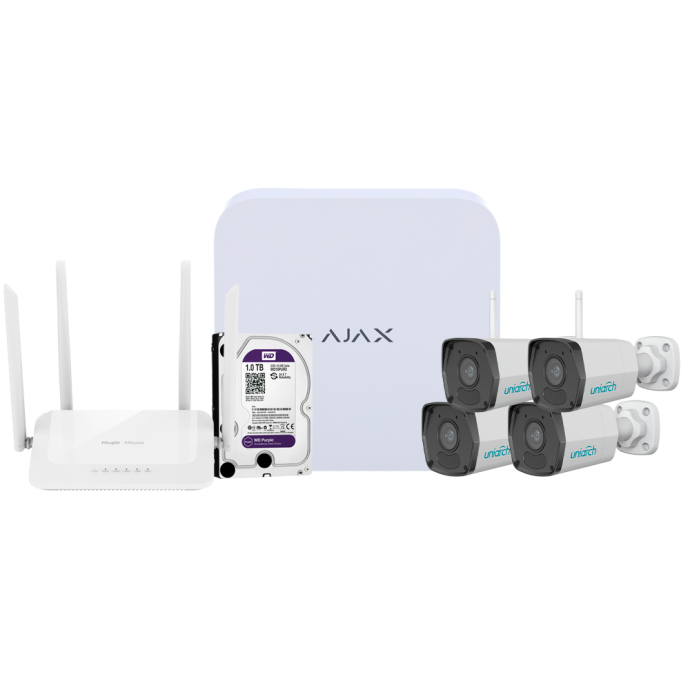

The kit consists of: an Ajax AJ-NVR108-W recorder, 4 Uniarch UV-UHO-B1R-M2F3 bullet cameras, a Reyee RG-EW1200 WiFi router and a 1TB hard drive.

As cameras we find 4 UV-UHO-B1R-M2F3 bullet cameras from Uniarch. They have a resolution of 2Mpx, 2.8mm fixed lens, infrared range of up to 30 meters. Day/night mechanical filter. Possibility of internal storage on a microSD card of up to 128 GB. The camera is WiFi, suitable for outdoors and motion detection.

The AJ-NVR108-W Ajax recorder is 8 channels, compatible with ONVIF/RTSP system. Communication through RJ45 ethernet port and capacity for 1 hard drive of up to 16TB (not included in the recorder).

The Reyee EW1200 router has 3 LAN ports and 1 WAN port. It is WiFi and has 2+2 integrated external omnidirectional antennas, allowing connections of up to 32 clients maximum.

Finally, the hard drive included in the kit has a capacity of 1TB, with a 3.5” SATA format from the Western Digital brand.

-
+

Technical Specifications of the Video Surveillance Kit: 108-W NVR Recorder + 4 Bullet Cameras + 4-Port WiFi Router + 1T Ajax Hard Drive

HD1TB

Capacity 1TB
Interface SATA
Transfer Rate 6 Gb/s
Model WD10PURX
Manufacturer Western Digital
Buffer size 64 MB
Temp. operation 0º C ~ +65º C

RG-EW1200

Brand Reyee
Interface 3 LAN ports 10/100Mbps , 1 WAN port 10/100Mbps
Maximum number of customers 32 (recommended 24))
Bandwidth 300Mbps in 2.4GHz + 867Mbps in 5GHz
WiFi Antennas 2+2 integrated external omnidirectional antennas
Power DC 12 V 0.6A 7W (adapter included)
Temp. operation -10º C ~ +45º C
Dimensions 32 (H) x 182 (W) ×121 (Fo) mm (excl. antennas)
Weight 400 g (packaging included)
Colour White

AJ-NVR108-W

Brand Ajax
Channels 8
Compatible cameras ONVIF / RTSP
Resolution Up to 4K (25/30 FPS)
Video compression format H.265 / H.264
Total bandwidth Up to 100 Mbps
Recording method Programmed, motion detection
Internal memory 1x HDD 3.5" SATA up to 16 TB (not included)
Communication RJ45 (Ethernet)
Remote access Ajax Smartphone App
Power DC 230V (50 Hz)
Operating temperature 0ºC ~ 40ºC
Operating humidity 75%
Dimensions 200 (H) x 200 (W) x 45(Fo) mm
Weight 700 g
Colour White

UV-UHO-B1R-M2F3

Brand Uniarch
Image sensor 1/2.9” Progressive Scan CMOS
Maximum resolution 2 Megapixel (1920x1080)
Lens 2,8 mm
Main Stream rate 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), Max 30fps;
Extra Stream rate 720P (1280 x 720), Max 30fps;
D1 (720 x 576), Max 30fps;
640 x 360,Max 30fps;
2CIF(704 x 288), Max 30fps;
CIF(352 x 288), Max 30fps;
Compression Ultra 265, H.265, H.264, MJPEG
Minimum illumination Colour: 0.01 lux (F2.1 AGC ON)
0 lux with IR on
Infrared range 30 m
Image improvements DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask
Day / Night Mechanical ICR filter
Internal memory MicroSD card, Max 128 GB
Alarms No
Audio Built-in microphone
Detection functions Human body detection, Motion detection, Audio detection, Anti-tampering alarm.
Wi-Fi IEEE802.11b/g/n
WI-FI frequency range 2.4 GHz ~ 2.4835 GHz
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Power DC 12V / 3,6W
Temp. operation -30º C ~ 60º C
Degree of protection Weatherproof IP67
Dimensions 168 (H) x 88 (W) x 72 (H) x [%VAR%] (D) mm
Weight 280 g
More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid
SERIE Kit Intrusión
Included Power supply, Remote control
Event notifier No
No. CCTV Recorder Inputs 8 analogic or TVI
Audio in ports 1
Product Brand AJAX
