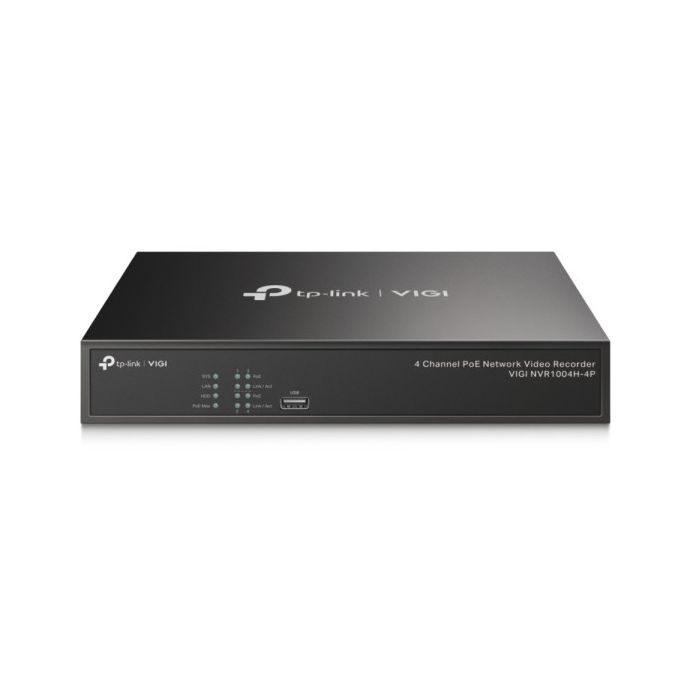

Vigi Tp-Link 4-Channel 8Mpx NVR Recorder

SKU
TL-NVR1104H-4P
Brands: Tplink
€109.43 Tax included
11% Discount for professionals
Tplink
Availability: In stock
24/48 Hours
Be the first to review this product

Vigi Tp-Link NVR Recorder 4 Channels POR 8Mpx

Looking for an efficient solution to manage and store your security camera recordings? TP-Link's TL-NVR1104H-4P recorder is just what you need. This 4-channel network video recorder (NVR) with PoE+ technology is ideal for small and medium-sized businesses that want to keep their facilities secure and well monitored. With its ability to connect and power up to four cameras via a single Ethernet cable, installation is quick and easy.

The TL-NVR1104H-4P offers exceptional image quality thanks to its 4K HDMI video output, allowing you to see every detail clearly. In addition, its decoding capacity of up to 16 megapixels ensures that you won't miss any important moments. This recorder is perfect for stores, offices, warehouses and any other place where security is a priority.

Among the TL-NVR1104H-4P's usage examples, we can mention its application in supermarkets, where it is crucial to monitor different areas simultaneously. It is also ideal for offices, allowing managers to supervise activities in real time from anywhere thanks to remote monitoring. In addition, its compatibility with third-party cameras via the ONVIF protocol makes it extremely versatile.

In terms of technical specifications, the TL-NVR1104H-4P features an input bandwidth of 80 Mbps and an output bandwidth of 60 Mbps, ensuring smooth and uninterrupted transmission. Its H.265+ compression technology helps save storage space without sacrificing video quality. With a storage capacity of up to 10TB, you can store all your recordings in a safe and accessible way. Improve your business security with TP-Link's TL-NVR1104H-4P!

-
+

Technical Specifications of the Vigi Tp-Link 4-Channel 8Mpx NVR Recorder

Video and Audio
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4
DESCODIFICACIÓN
Audio Compression G.711A/G.711U/G.726
Formato de decodificación H.265+/H.265/ H.264+/H.264
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Resolución de vista en vivo/reproducción 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Reproducción síncrona 4 Canales
Capacidad 2-ch @ 8MP, 4-ch @ 4MP
Record Management
Record Mode • Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode • Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
Red
Protocolo TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access Android, iOS
Ancho de banda de entrada 80 Mbps
Ancho de banda de salida 60 Mbps
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI
External Interface
Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker 1; Real-time Audio Output without Needing Peripherals.
eSATA N/A
HDMI 1
VGA 1
HDD
SATA 1 Interfaz SATA
Capacidad Hasta 10 TB
PoE
Standard 802.3at/af Compliant
Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 53 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
INTERFACES
Interfaz de Red 1 interfaz Ethernet autoadaptable RJ-45 10/100 Mbps
Interfaz USB 2× USB 2.0
GENERAL
Temperatura de funcionamiento -10–55 °C
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Contenido del Paquete Videograbadora en red VIGI
Adaptador de corriente
Tornillos HDD
Ratón
Guía rápida de instalación
Working Temperature • NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensiones 200.3 × 200.3 × 43 mm
PoE Estándar: 802.3af/at
Puertos PoE: Puertos 1-4
PoE Presupuesto: 53 W
Fuente de Alimentación Externa 53.5V DC/1.31A
Power Supply 53.5V DC/1.31A
Consumo energético 4,82 W (sin disco)
Certificaciones CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Vídeo/Imagen
Entrada de video Entrada de vídeo IP de 4 canales, resolución de hasta 8 MP
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
HDMI Output Resolution 1 Canal, Resolución: 3840x2160/30Hz,1920x1080/60Hz,
1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Canal, Resolución: 1920x1080/60Hz,1680x1050/60Hz,
1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
More Information
More Information
EAN4897098688786
Hight0.060
Length0.500
Width0.350
SECURITY - SYSTEMIP
SEGURIDAD - SERIE8Mpx
IncludedMouse, Power supply
Event notifierYes
No. CCTV Recorder Inputs4 IP
Audio in ports1
Product BrandTplink
