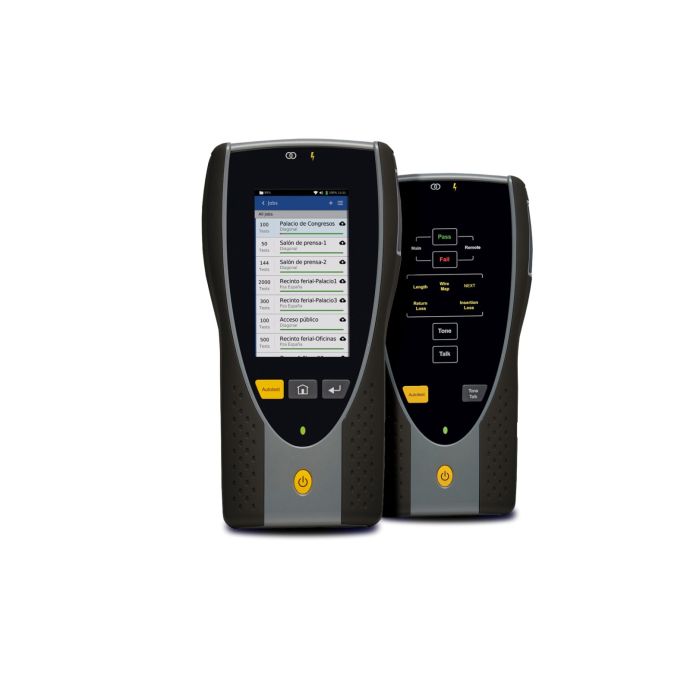

Voice and Data Network Analyzer Lantek IV 3000 (Category 8 Certifier)

Technical Specifications of the IC-088D LAN and Fiber Optic Cabling Analyzer

FIBER OPTIC ADAPTER

 Visual fault locator: Locate breaks instantly.

 Synchronization indicator: Green when connected to the certifier, red when there is service on the cable.

 Optical connectors: Includes SC, FC and ST adapters (LC optional).

 Adapted to the client: The reports allow adjusting to the client's own naming convention.

 Compliance with Encircled Flux: Allows compliance with the new fiber standards IEC 14763-3 (year 2016) and ANSI/TIA-526-14-C.

 Field Calibration: To comply with ISO/IEC and ANSI/TIA.

NETWORK CERTIFICATION UNIT

 Advanced measures: TCL/ELTCTL, Common/Differential NEXT, Resistance Unbalance, Shield integrity

 Exceeds CAT8 Class II requirements: Frequency up to 3000 MHz (50% more than minimum requirements).

 Flexible connectivity: Via Bluetooth, WiFi or USB.

 Connection to label printer: Helps to physically identify network outlets.

 Protected against impacts: Double injection rubber design.

 Touch screen: Protected against shocks. Simple user interface.
