Wall Rack Cabinet 19" 6U Depth 550 with Accessories GTLAN

SKU
GTL31GTM6F5
Brands: GTlan
€232.78 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

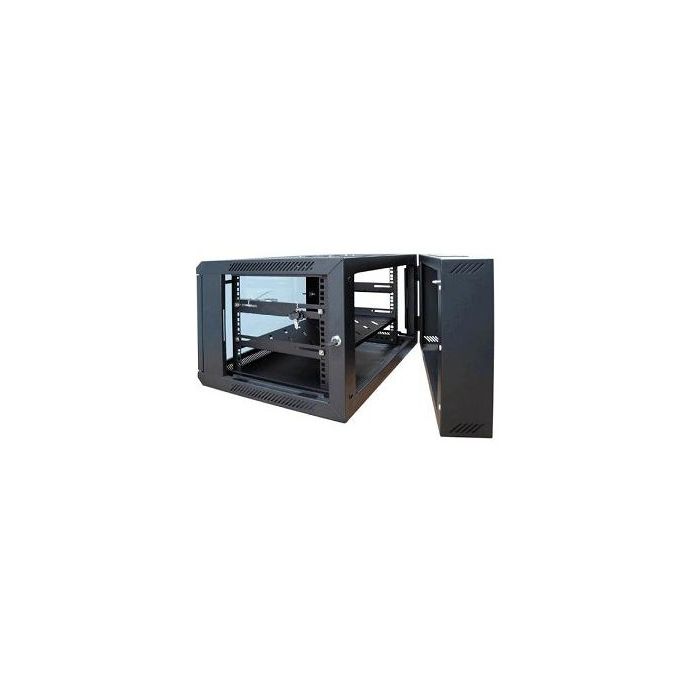

Wall Rack Cabinet 19" 6U Depth 550mm with Accessories GTLan 31GTM6F5

19" 6U high and 550mm deep wall-mounted rack cabinet. Composed of 2 bodies. Designed for all small installations that require a robust and quality cabinet to organize the data network.

This cabinet has dimensions of: 367 (Height) x 600 (Width) x 550 (Depth) mm. Made of 2mm SPCC cold rolled steel, 5mm tempered glass door, with rectangular lock, and removable sides, with plastic locks (optional round lock). The cabinet supports a maximum load of 60kg.

Accessories included with this wall-mounted rack cabinet: fixed tray, 19" power strip, ceiling fan and screw/nut kit.

-
+

Server rack cabinet 19" 6U and 550mm depth, consisting of 2 bodies and accessories.

Click here to discover the entire range of GTLAN rack cabinets.

What technical specifications does the GTLAN 31GTM6F5 rack have?

Capacity 6U
Profile L type
Maximum load 60 kg
Material 5mm tempered glass, 2mm high quality cold rolled SPPC steel
Clamping profiles 4 pcs adjustable in depth (2mm thick)
Front door 5mm tempered glass with rectangular lock
Back Folding to improve the handling of the cabinet from the rear of it
Lateral Detachable smooth with plastic closures (optional round side lock)
Wired input Upper and lower
Finish Fine-grained powder coating
Color Black RAL - 9004
Dimensions 367x600x550 mm
Packaging Dimensions 377x610x560 mm
Weight 20 kg
Packaging Weight 22 kg
Accesories Fixed tray + Power strip 19" + Ceiling fan + kit screws/nuts
Watertightness IP20
Normative EIA/ECA-310-E, IEC 60297, ETSI/EN 300 119, RoHS 2011/65/UE Y CE
Cubic capacity with pallet 0.202 m3

More Information
EAN 8435481002465
Hight 0.610
Length 0.380
Width 0.560
Color Black
Units 6
Width 19"
Depth 550 mm
Rack type Wall
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Wall
Product Brand GTlan
Write Your Own Review
You're reviewing:Wall Rack Cabinet 19" 6U Depth 550 with Accessories GTLAN
Your Rating
File Label Size Download
pdf Ficha técnica del Armario Rack Mural 31GTM6F5 de GTLAN 70.3 KB Download
