Wall Rack Cabinet 19" 9U Depth 450 with Accessories GTLAN

SKU
GTL31GTM9F4
Brands: GTlan
€162.22 Tax included
Availability: In stock
24/48 Hours

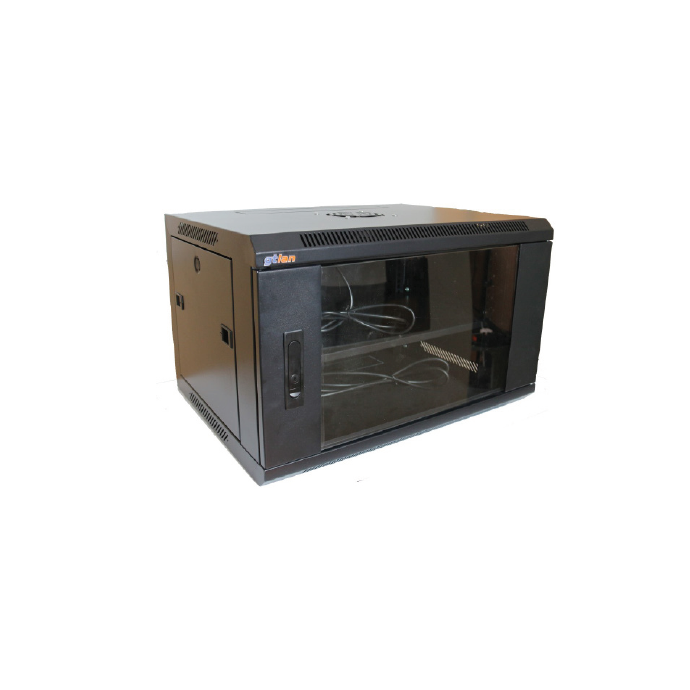

19" 9U F450 Wall Rack Cabinet with Accessories GTLAN 31GTM9F4

Rack cabinet for wall installation with 19" width, 9U height and 450mm depth, has dimensions of 500x600x450 mm. This wall cabinet is ideal for small installations that require a solid and robust cabinet.

Its small size and the possibility of changing the opening direction of the door, makes this cabinet adapt to any space and can be installed in places where a floor cabinet cannot fit. Another of its advantages is the Drill & Go fastening system that facilitates installation, and can be carried out by a single person without the need for help.

The following accessories are included with the purchase of this wall-mounted rack cabinet: fixed tray, 19" power strip, ceiling fan and screw/nut kits.

-
+

Wall rack cabinet 19" 9U and 600mm deep, with accessories included.

Click here to discover the entire range of GTLAN rack cabinets.

What technical specifications does the GTLAN 31GTM9F4 rack have?

Capacity 9U
Profile L type
Maximum load 60 kg
Material 5mm tempered glass, 2mm high quality cold rolled SPPC steel
Clamping profiles 4 pcs adjustable in depth (2mm thick)
Front door 5mm tempered glass with rectangular lock
Back Smooth with Drill&Go binding
Lateral Detachable smooth with plastic closures (optional round side lock)
Wired input Upper and lower
Finish Fine-grained powder coating
Color Black RAL - 9004
Dimensions 500x600x450 mm
Packaging Dimensions 510x610x460 mm
Weight 20.90 kg
Packaging Weight 22 kg
Accesories Fixed tray + Power strip 19" + Ceiling fan + kit screws/nuts
Watertightness IP20
Normative EIA/ECA-310-E, IEC 60297, ETSI/EN 300 119, RoHS 2011/65/UE Y CE
Cubic capacity with pallet 0.155 m3

More Information
EAN 8435481002434
Hight 0.610
Length 0.510
Width 0.460
Color Black
Units 9
Width 19"
Depth 450 mm
Rack type Wall
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Wall
Product Brand GTlan
