Wall Rack Cabinet 19" 9U Depth 550 with Accessories GTLAN

SKU
GTL31GTM9F5
Brands: GTlan
€294.03 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

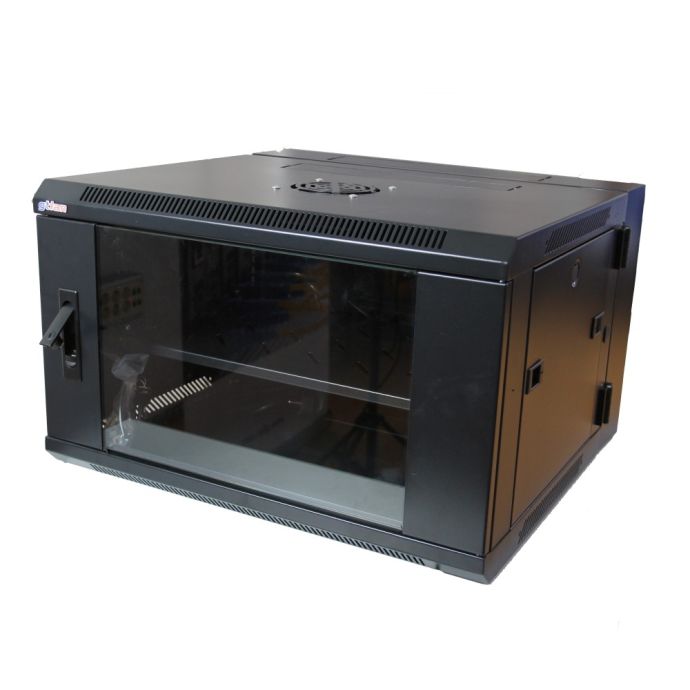

Wall Rack Cabinet 19" 9U Depth 550mm with Accessories GTLAN 31GTM9F5

19" wall-mount rack cabinet with 9U high and 550mm deep, dimensions: 500 (Height) x 600 (Width) x 550 (Depth) mm. Cabinet consisting of 2 bodies: hinged rear to facilitate handling by that closet side.

Made of 2mm SPCC laminated steel and 5mm tempered glass door, with rectangular lock. Detachable smooth sides with plastic closures (optional round lock). It supports a maximum load of 60kg, ideal for small installations that require a robust cabinet.

Accessories included with this wall-mounted rack cabinet: fixed tray, 19" power strip, ceiling fan and screw/nut kit.

-
+

Server rack cabinet 19 inch 9U with 550mm depth, consisting of 2 bodies and accessories.

Click here to discover the entire range of GTLAN rack cabinets.

What technical specifications does the GTLAN 31GTM9F5 rack have?

Capacity 9U
Profile L type
Maximum load 60 kg
Material 5mm tempered glass, 2mm high quality cold rolled SPPC steel
Clamping profiles 4 pcs adjustable in depth (2mm thick)
Front door 5mm tempered glass with rectangular lock
Back Folding to improve the handling of the cabinet from the rear of it
Lateral Detachable smooth with plastic closures (optional round side lock)
Wired input Upper and lower
Finish Fine-grained powder coating
Color Black RAL - 9004
Dimensions 500x600x550 mm
Packaging Dimensions 510x610x560 mm
Weight 24 kg
Packaging Weight 26 kg
Accesories Fixed tray + Power strip 19" + Ceiling fan + kit screws/nuts
Watertightness IP20
Normative EIA/ECA-310-E, IEC 60297, ETSI/EN 300 119, RoHS 2011/65/UE Y CE
Cubic capacity with pallet 0.202 m3

More Information
EAN 8435481002526
Hight 0.530
Length 0.640
Width 0.580
Color Black
Units 9
Width 19"
Depth 550 mm
Rack type Wall
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Wall
Product Brand GTlan
