Wall Rack Cabinet 19" 9U Depth 600 with Accessories GTLAN

SKU
GTL31GTM9F6
Brands: GTlan
€206.98 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

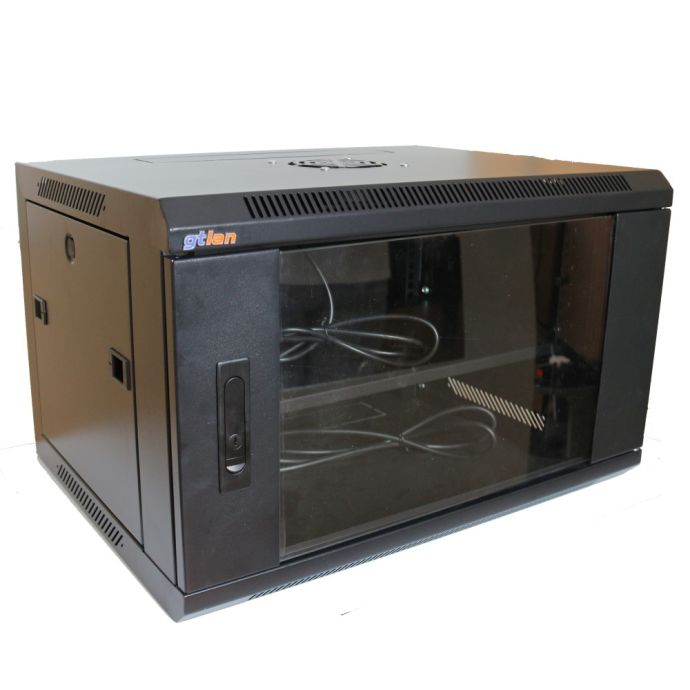

Wall Rack Cabinet 19 "9U 600mm Depth with Accessories GTLAN 31GTM9F6

Rack cabinet for wall mounting, 19" 9U and 600mm deep. Dimensions: 500 (Height) x 600 (Width) x 600 (Depth) mm. Ideal for small installations that require a solid rack cabinet to organize and protect the network equipment.

Made of 2mm cold rolled SPCC steel and 5mm tempered glass front door, with rectangular lock. Smooth sides with plastic closures and a smooth back with Drill & Go fixing system, which allows assembly by a single person and without assistance. This cabinet supports a maximum load of 60kg.

Accessories included with this wall-mounted rack cabinet: fixed tray, 19" power strip, ceiling fan and screw/nut kit.

-
+

Wall rack cabinet 19" 9U and 600mm deep, with accessories included.

Click here to discover the entire range of GTLAN rack cabinets.

What technical specifications does the GTLAN 31GTM9F6 rack have?

Capacity 9U
Profile L type
Maximum load 60 kg
Material 5mm tempered glass, 2mm high quality cold rolled SPPC steel
Clamping profiles 4 pcs adjustable in depth (2mm thick)
Front door 5mm tempered glass with rectangular lock
Back Smooth with Drill&Go binding
Lateral Detachable smooth with plastic closures (optional round side lock)
Wired input Upper and lower
Finish Fine-grained powder coating
Color Black RAL - 9004
Dimensions 500x600x600 mm
Packaging Dimensions 510x610x610 mm
Weight 25.30 kg
Packaging Weight 27 kg
Accesories Fixed tray + Power strip 19" + Ceiling fan + kit screws/nuts
Watertightness IP20
Normative EIA/ECA-310-E, IEC 60297, ETSI/EN 300 119, RoHS 2011/65/UE Y CE
Cubic capacity with pallet 0.12 m3

More Information
EAN 8435481014833
Hight 0.800
Length 0.600
Width 0.700
Color Black
Units 9
Width 19"
Depth 600 mm
Rack type Wall
Rack accessories Other accessories, Plates, Strips, Ventilation units
Frame Wall
Product Brand GTlan
Write Your Own Review
You're reviewing:Wall Rack Cabinet 19" 9U Depth 600 with Accessories GTLAN
Your Rating
File Label Size Download
pdf Ficha técnica del Armario Rack Mural 31GTM9F6 de GTLAN 107.8 KB Download
