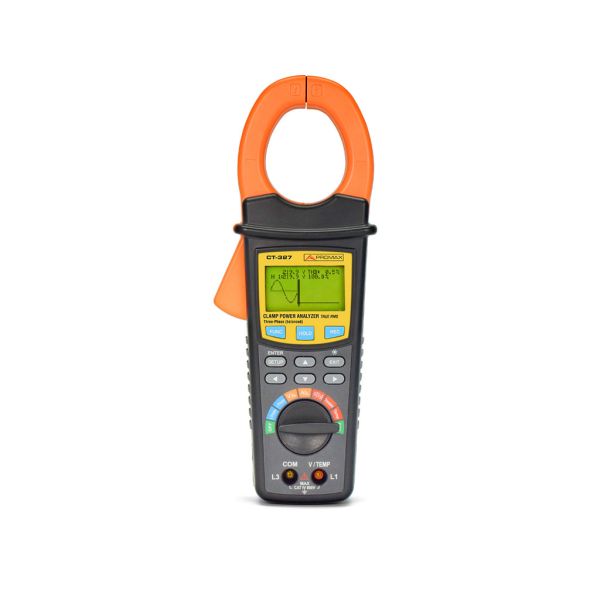

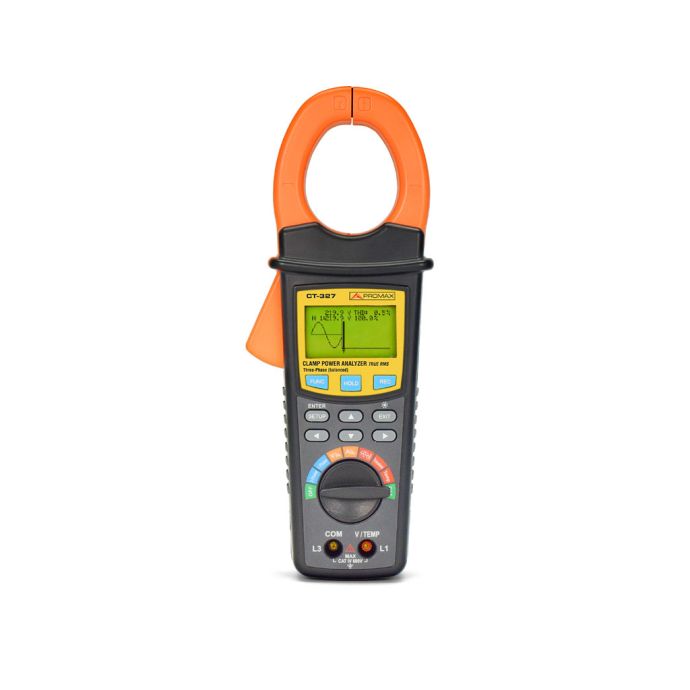

Wattmeter and Harmonics Clamp Single Phase and Balanced Three Phase 600V/2000A

Wattmeter clamp with datalogger and screen with which you can view the voltage and current graphs, as well as the harmonics.

The clamp can perform various tests and measurements by recording the day and time the measurements were taken. These measurements will be stored on a microSD card (includes an 8GB capacity), configuring a time between samples between 2 and 7200 seconds.

The clamp can measure: AC TRMS voltage, AC TRMS current, power and energy measurement, power factor, phase angle, harmonics, frequency, resistance, capacity, temperature, datalogger, phasor diagram.

It includes a software that will allow you to convert the data to MS Excel.

This tool comes with the following accessories: Test leads, Alligator clips, USB cable, RS-232 cable, Measurement acquisition software, Temperature probe, 8 GB microSD card, Carry bag, AC adapter.

Details

Technical Specifications of the Clamp Wattmeter and Harmonics Single Phase and Balanced Three Phase 600V/2000A

TRMS AC VOLTAGE
scales	From 10 to 600 V / Peak-peak
overload protection	720 V RMS

TRMS AC CURRENT
scales	De 10 a 2000 A / Pico-pico
overload protection	2100 A RMS con pinzas

POWER FACTOR	from 0 to 1

PHASE ANGLE φ	From -180º to 180 A

POWER	Active, Apparent and Reactive. From 0 to 1.8 MW/Mva/Mvar

ENERGY/h (WH/SH/QH)	Active, Apparent and Reactive. 0k to 9M

HARMONIC MEASUREMENT	From the 1st to the 50th harmonic of Voltage and Current

TOTAL HARMONIC DISTORTION	From 0 to 100%

FREQUENCY	45 to 65Hz

TEMPERATURE	Scales from -100 to 199.9 ºC and from 200 to 1300 ºC

INDICATION	Dot matrix LCD display (128x64 pixels) backlit

PRESENTATION FUNCTIONS	HOLD (measurement hold), current and voltage waveform, phasor diagram, peak-peak measurement

OVERMARGIN	(OL) or (-OL) appears on the display, and “999” or “9999” appears on the datalogger (ignoring the decimal separator)

DATALOGGER	Storage of measurements on microSD card (up to 32 GB) with timestamp and export to Microsoft Excel

ØMAX DRIVER	57 mm

FREQUENCY RESPONSE OF THE CLAMPS	40Hz to 1kHz

FEEDING	2 x 1.5V AA size batteries or 9V AC adapter

PROTECTION CATEGORY	CAT IV (600 V)

ACCESSORIES INCLUDED	Test leads, Alligator clips, USB cable, RS-232 cable, Measurement acquisition software, Temperature probe, 8 GB microSD card, Carry bag, AC adapter
