WIFI 6 3000Mbps Indoor Wall Access Point PIE by Engel

SKU
ENGEWS356-FIT
Brands: EnGenius
€73.93 Tax included
Availability: In stock
24/48 Hours

WiFi6 3000Mbps Indoor Dual Band POE WiFi Access Point Engenius

This access point is the ideal solution for small businesses, looking for high quality and reliable performance at a very competitive price, such as hospitality companies or small offices. This access point is wireless, is WiFi6 and POE, which allows implementation with a single cable for power and data, ensuring a quick and easy installation.

The EWS356-FIT is working in dual band which makes it ultra fast, with transfer speeds of 574Mbps at 2.4GHz and 1200Mbps at 5GHz. Withintegrated dual 2x2 5dBi antenna. Protected by first-class WPA3/WPA2PSK AES encryption protocols for unparalleled security.

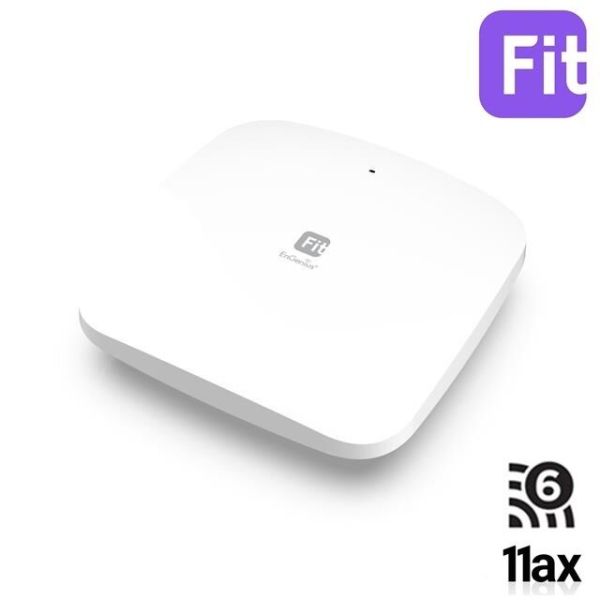

The access point is very small and compact. It comes with a blue LED that shows the access point status. On its back side we can find a power socket, a LAN ethernet port and a reset button.

Its configuration is very easy and the application is very simple, with scanning of QR code. Its web interface is very intuitive when configuring in the cloud. You will have visibility and control of the cloud from anywhere, without access point licenses or subscription fees. In the Fit Express app you will have all the configuration options at your fingertips.

In this link you can see a demo of the engenius platform, different from the Cloud. This platform is completely free and is capable of supporting up to 30 access points;

https://fit.engenius.ai/demo



Package contents

1 - EWS356-FIT Indoor Access Point
1 - Ceiling Mount Base (9/16" Trail)
1 - Ceiling Mount Base (15/16" Trail)
1 - Wall and Ceiling Mount Screw Kit
1 - Quick Installation Guide
1 - Quick Installation Guide

-
+

Technical Specifications of the Engenius Dual Band WiFi6 3000Mbps Indoor POE Access Point



Standards

802.11a/b/g/n/ac/ax

Antenna

2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi

Physical interface

1 x 10/100/1000 BASE-T
DC12V
Yes, proceed to reset and reboot by pressing this button.

LED indicators

1 x multifunction

Power supply

802.3af PoE
12 V DC

Maximum power consumption

10,7 W

Wireless Specifications

Frequency of operation

Concurrent dual radio 2.4 GHz and 5 GHz

Operating modes

Managed mode: AP, AP Mesh, Mesh
Independent: AP, Mesh, WDS AP, WDS BR, WDS STA

Radio Frequency
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmission power

Up to 21 dBm at 2.4 GHz
Up to 21 dBm at 5 GHz
(Maximum power is limited by regulatory domain)

Radio stations

2 × 2:2

SU-MIMO capability

Two (2) spatial-streaming single-user (SU) MIMO for wireless data rate up to 574 Mbps with HE40 bandwidth to a 2×2 wireless client device under 2.4 GHz radio.
Two (2) spatial-streaming single-user (SU) MIMO for wireless data rate up to 2400 Mbps with HE160 to a 2×2 wireless device under 5 GHz radio.

MU-MIMO capability

Two (2) Multiple (MU)-MIMO spatial streams with a wireless data rate of up to 2400 Mbps to transmit to two (2) streams of MU-MIMO 11ax capable wireless client devices below 5 GHz simultaneously.

5 GHz radio.
Two (2) Multiple (MU)-MIMO spatial streams with a wireless data rate of up to 574 Mbps to transmit to two (2) streams of MU-MIMO 11ax capable wireless client devices below 2.4 GHz simultaneously.

Multiple (MU)-MIMO spatial streams with a wireless data rate of up to 574 Mbps to transmit to two (2) streams of MU-MIMO 11ax capable wireless client devices below 2.4 GHz simultaneously.

Supported data rates (Mbps):

802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/ g: 6, 9, 12, 18, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2).

Supported data rates

802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)

802.11b: 1, 2, 5,5, 11

802.11a/ g: 6, 9, 12, 18, 36, 48, 54

802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)

802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported radio technologies

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)

802.11a/g/n/ac: Orthogonal frequency division multiplexing (OFDM)

802.11b: Direct Sequence Spread Spectrum (DSSS)

Channeling

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM

802.11b: BPSK, QPSK, CCK

Maximum simultaneous users

128 by radio

Management Functions

Implementation options

Stand-alone (Individually managed)
FitXpress
FitController

Environmental andPhysical

Temperature range

In operation: 0 ºC~40 ºC
Storage: -40 ºC~80 ºC

Humidity (non-condensing)

In operation: 90 % or less
Storage: 90 % or less

EWS356-FIT device

Length: 160 mm
Width: 160 mm
Height: 30 mm

Regulations

FCC
CE
IC
UCKA

Warranty

2 years

More Information
EAN 4713361936487
Hight 0.040
Length 0.190
Width 0.100
RED - System WIFI6
RED - SERIE Desktop
Color White
Network Equipment Access Point
Ports 1
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand EnGenius
