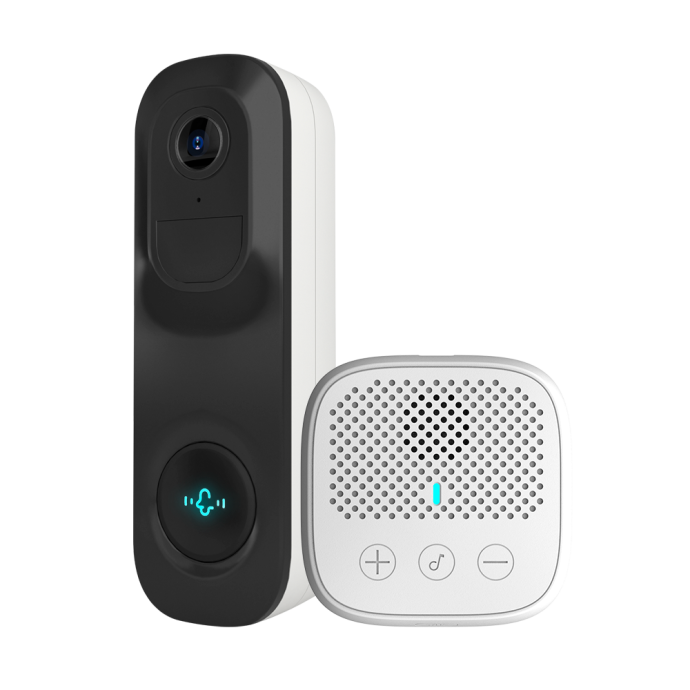

WiFi/IP Camera 3Mpx Fixed 2.8mm IR5m PIR SD Sensor 5200mAh Battery and VicoHome Doorbell

Brand

VicoHome

Model

DB1

Image sensor

1/2.8" Progressive scan CMOS

Maximum resolution

3 Megapixel (2048 x 1536)

Aspect ratio

4:3 for more vertical view

Compression

H.264/H.265

Lens

2.8 mm (Angle: 160° D, 114°H)

Minimum illumination

0.01 Lux

Infrared lighting

(5m) IR range

Communication

Wi-Fi 2.4 GHz
RF Sub-G FSK Protocol 868 MHz

Interior bell

Wireless 868 MHz (150m in the open field)
5 tones / Adjustable volume (Max 85 dB)
Power supply DC5V (not included)

Detection

Call button, with in-app notification and communication
Real PIR sensor, triggers camera video and notification

Audio

Two-way audio, built-in microphone and speakerphone

Internal memory

MicroSD Card, Max 128 GB (not included)

Cloud Service

Free service: notifications for motion detection with cloud recording (overwrites when it reaches 3 days or 0.5GB)).
Subscription service: includes intelligent detection of people, pets, and area of interest.
Different plans according to duration and storage (1 free trial month after subscription).

Remote access

VicoHome Smartphone App

Battery

Rechargeable Li-ion of DC5V / 5200 mAh
Estimated duration 5 months (20 uses of 10 seconds per day)
Loading time 10 hours (DC5V)

Power

Charger DC5V (not included)
Wired installation: AC 8~24 V

Use

Indoor and outdoor camera/ impermeable IP65

Installation

Straight in narrow frame
Support with vertical tilt in narrow frame
Horizontal tilt support in narrow frame
Alarm with anti-opening tamper

Temp. operation

-10º C ~ +45º C

Dimensions

144mm*46mm*31mm
