WiFi6 Outdoor Radio Link 1200Mbps 2xGigabit POE 16dBi by Engenius

SKU
ENGENH500-AX
Brands: EnGenius
€240.26 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

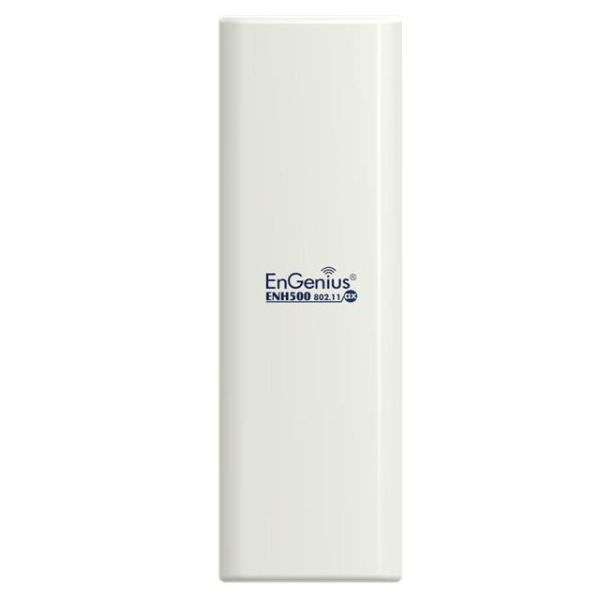

Outdoor WiFi6 2xGigabit POE radio link ENH500-AX by Engenius

This long-range radio link is used to extend point-to-point or point-to-multipoint networks. Typical applications for this radio link are: connecting two buildings into a single network, fiber replacement, video surveillance system, trailer parks, digital signage, etc. In these cases, cabling is often impractical and we eliminate the expense of cable runs.

The ENH500-AX is aerodynamic, it can reach distances of up to 8km. It has 2 2x2 directional antennas with speeds of 1200Mpbs in the 5GHz band. The antennas have a transmission power of 26 dBm. Its ethernet port is gigabit and PoE.

With high performance WiFi6 technology and great efficiency in outdoor environments. Both the uplink and downlink use MU-MIMO technology.

Its casing is suitable for outdoor use, with an IP55 protection index, resistant to water, dust and sun.

-
+

Technical Specifications of Engenius ENH500-AX WiFi6 2xGigabit POE Outdoor Radio Link

Technical specifications

standards
IEEE 802.11ax at 5GHz
(Backwards compatible with 802.11b/g/n/ac)

Processor
1.0GHz Qualcomm® Quad-Core ARM Cortex A53s CPU

Antenna
5GHz (port 1)
- Average antenna gain: 16 dBi
- Polarization: linear
- Azimuth beamwidth: 18°
- Elevation beam width: 58°
- VSWR: 1:2.0
5GHz (port 2)
- Average antenna gain: 16 dBi
- Polarization: linear
- Azimuth beamwidth: 18°
- Elevation beam width: 85°
- VSWR: 1:2.0

physical interface
2 Ethernet ports 10/100/1000 BASE-T, RJ-45
1 x reset button

LED indicators
1 x power
1xLAN 1
1 x LAN 2
1 x Wi-Fi
1 sign.

Power supply
EPA5006GP PoE Injector

maximum power consumption
12.5W

surge protection
Line to line: 1KV
Line to ground: 2 KV

ESD protection
Contact: 4KV
Air: 8KV

More Information
Hight 0.000
Length 0.000
Width 0.000
REDES - System WIFI6
REDES - SERIE Punto - Multipunto
Color White
Network Equipment Radio link
Ports 2
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand EnGenius
